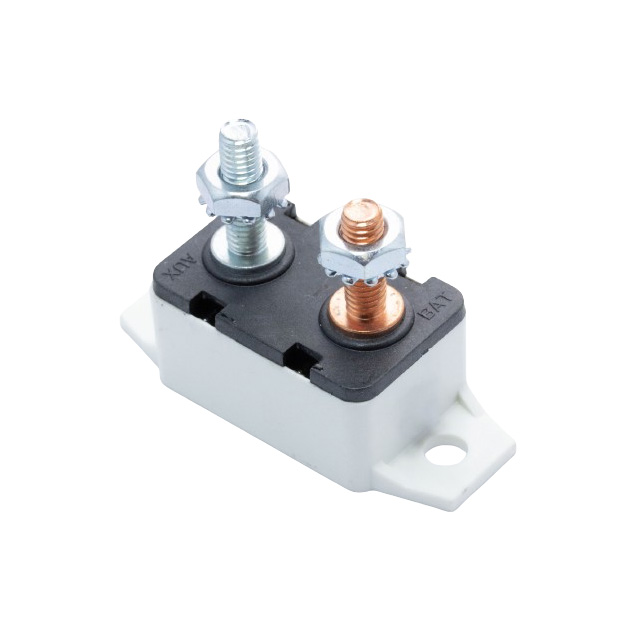

ACBP-V-25C
ActiveOptiFuse
CIR BRKR 25A 32VDC AUTO RESET
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACBP-V-25C
ActiveOptiFuse
CIR BRKR 25A 32VDC AUTO RESET
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ACBP-V-25C | ACBP-V Series |
|---|---|---|
| Actuator Type | Automatic Reset | Automatic Reset |
| Approval Agency | IP 63, SAE J1171, SAE J553 | IP 63, SAE J1171, SAE J553 |
| Breaker Type | Shortstop | Shortstop |
| Current Rating (Amps) | 25 A | 20 - 30 A |
| Illumination | None | None |
| Number of Poles | 1 | 1 |
| Voltage Rating - DC | 32 V | 32 V |
ACBP-V Series
CIR BRKR 25A 32VDC AUTO RESET
| Part | Voltage Rating - DC | Approval Agency | Breaker Type | Current Rating (Amps) | Actuator Type | Number of Poles | Illumination |
|---|---|---|---|---|---|---|---|
OptiFuse ACBP-V-25C | 32 V | IP 63, SAE J1171, SAE J553 | Shortstop | 25 A | Automatic Reset | 1 | None |
OptiFuse ACBP-V-30C | 32 V | IP 63, SAE J1171, SAE J553 | Shortstop | 30 A | Automatic Reset | 1 | None |
OptiFuse ACBP-V-20A | 32 V | IP 63, SAE J1171, SAE J553 | Shortstop | 20 A | Automatic Reset | 1 | None |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.91 | |
| 10 | $ 4.62 | |||
| 25 | $ 4.33 | |||
| 50 | $ 4.03 | |||
| 100 | $ 3.68 | |||
| 250 | $ 3.62 | |||
| 500 | $ 3.50 | |||
| 1000 | $ 3.39 | |||
Description
General part information
ACBP-V Series
Circuit Breaker Shortstop 25A AC 32 V DC Automatic Reset
