TL6215VF200GBT

Active

E-Switch

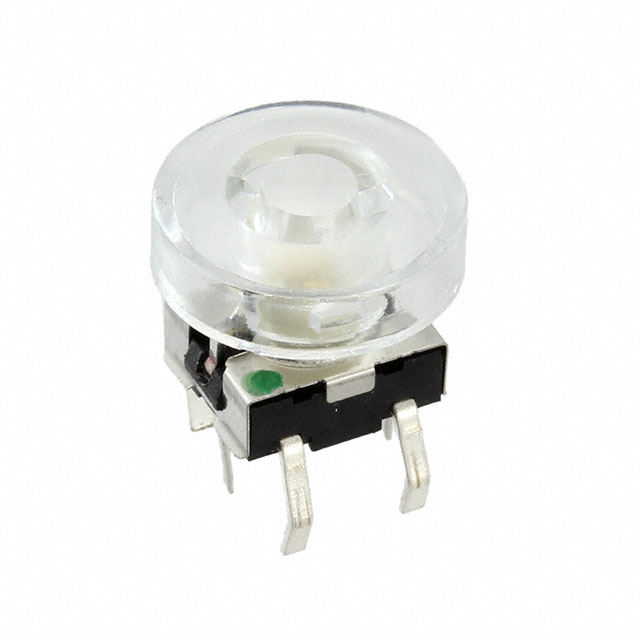

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TL6215VF200GBT

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TL6215VF200GBT

Actuator Height off PCB, Vertical	8.8 mm
Actuator Orientation	Top Actuated
Actuator Type	Round Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Illuminated
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.1 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	500000 Cycles
Mounting Type	Through Hole
Operating Force	200 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	7.7 mm
Outline [y]	6.37 mm
Switch Function	Off-Mom
Switch Travel	0.45 mm
Termination Style	PC Pin

TL6215 Series

Part	Mechanical Life	Termination Style	Switch Travel	Operating Force	Illumination	Illumination Voltage (Nominal)	Actuator Height off PCB, Vertical	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating @ Voltage	Circuit	Mounting Type	Switch Function	Actuator Orientation	Illumination Type, Color	Outline [y]	Outline [x]	Actuator Type	Actuator Length, Right Angle [custom]	Actuator Length, Right Angle	Actuator Height off PCB, Vertical [z]
E-Switch TL6215VF200GNN	500000 Cycles	PC Pin	0.45 mm	200 gf	Illuminated	2.1 VDC	5.35 mm	IP67 - Dust Tight Waterproof	-20 C	70 °C	0.05 A 12 VDC	SPST-NO	Through Hole	Off-Mom	Top Actuated	Green LED	6.37 mm	7.7 mm	Plunger for Cap
E-Switch TL6215RF200GDT	500000 Cycles	PC Pin	0.45 mm	200 gf	Illuminated	2.1 VDC		IP67 - Dust Tight Waterproof	-20 C	70 °C	0.05 A 12 VDC	SPST-NO	Through Hole Right Angle	Off-Mom	Side Actuated	Green LED	6.65 mm	7.7 mm	Round Button	9.6 mm
E-Switch TL6215RF200RDT	500000 Cycles	PC Pin	0.45 mm	200 gf	Illuminated	1.95 VDC		IP67 - Dust Tight Waterproof	-20 C	70 °C	0.05 A 12 VDC	SPST-NO	Through Hole Right Angle	Off-Mom	Side Actuated	LED Red	6.65 mm	7.7 mm	Round Button	9.6 mm
E-Switch TL6215VF450BNN	500000 Cycles	PC Pin	0.45 mm	450 gf	Illuminated	3.3 VDC	5.35 mm	IP67 - Dust Tight Waterproof	-20 C	70 °C	0.05 A 12 VDC	SPST-NO	Through Hole	Off-Mom	Top Actuated	Blue LED	6.37 mm	7.7 mm	Plunger for Cap
E-Switch TL6215VF450RNN	500000 Cycles	PC Pin	0.45 mm	450 gf	Illuminated	1.95 VDC	5.35 mm	IP67 - Dust Tight Waterproof	-20 C	70 °C	0.05 A 12 VDC	SPST-NO	Through Hole	Off-Mom	Top Actuated	LED Red	6.37 mm	7.7 mm	Plunger for Cap
E-Switch TL6215RF200BNN	500000 Cycles	PC Pin	0.45 mm	200 gf	Illuminated	3.3 VDC		IP67 - Dust Tight Waterproof	-20 C	70 °C	0.05 A 12 VDC	SPST-NO	Through Hole Right Angle	Off-Mom	Side Actuated	Blue LED	6.65 mm	7.7 mm	Plunger for Cap		4.45 mm
E-Switch TL6215VF200RNN	500000 Cycles	PC Pin	0.45 mm	200 gf	Illuminated	1.95 VDC	5.35 mm	IP67 - Dust Tight Waterproof	-20 C	70 °C	0.05 A 12 VDC	SPST-NO	Through Hole	Off-Mom	Top Actuated	LED Red	6.37 mm	7.7 mm	Plunger for Cap
E-Switch TL6215VF200RET	500000 Cycles	PC Pin	0.45 mm	200 gf	Illuminated	1.95 VDC	10.7 mm	IP67 - Dust Tight Waterproof	-20 C	70 °C	0.05 A 12 VDC	SPST-NO	Through Hole	Off-Mom	Top Actuated	LED Red	6.37 mm	7.7 mm	Round Button
E-Switch TL6215VF200WBT		PC Pin	0.45 mm	200 gf	Illuminated		8.8 mm	IP67 - Dust Tight Waterproof	-20 C	70 °C	0.05 A 12 VDC	SPST-NO	Through Hole	Off-Mom	Top Actuated	LED White	6.37 mm	7.7 mm	Plunger for Cap
E-Switch TL6215VF200BGT	500000 Cycles	PC Pin	0.45 mm	200 gf	Illuminated	3.3 VDC		IP67 - Dust Tight Waterproof	-20 C	70 °C	0.05 A 12 VDC	SPST-NO	Through Hole	Off-Mom	Top Actuated	Blue LED	6.37 mm	7.7 mm	Oval Button			10.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.81
		10	$ 2.69
		60	$ 2.28
		120	$ 2.13
		240	$ 2.06

Description

General part information

TL6215 Series

Tactile Switch SPST-NO Top Actuated Through Hole
