FLAY20K000B
ActiveVPG Foil Resistors
FLAY20K000B 2.5 PPM CONFORMAL
FLAY20K000B
ActiveVPG Foil Resistors
FLAY20K000B 2.5 PPM CONFORMAL
Description
General part information
FLAY20K000B

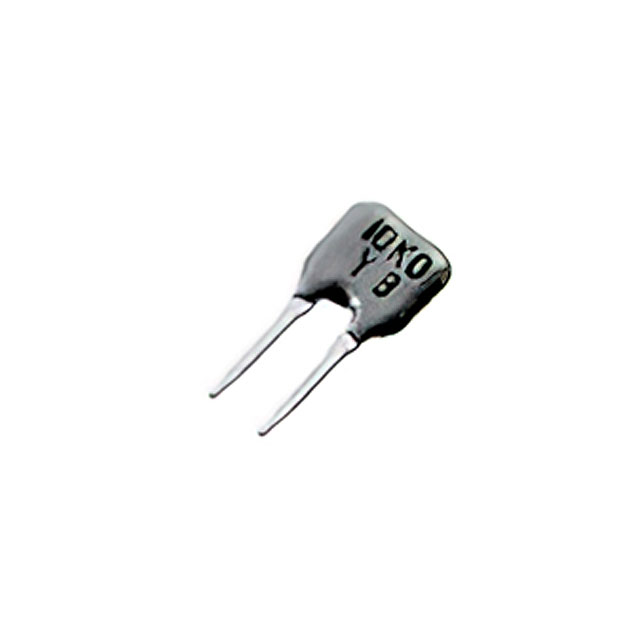

20 kOhms ±0.1% 0.125W, 1/8W Through Hole Resistor Radial Metal Foil
Technical Specifications
Parameters and characteristics for this part
| Specification | FLAY20K000B |
|---|---|
| Composition | Metal Foil |
| Height - Seated (Max) | 0.264 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Radial |
| Package Name | Radial Lead |
| Power (Watts) | 0.125 W |
| Power (Watts) Options | 1/8W |
| Resistance | 20 kOhm |
| Size / Dimension Length | 0.22 in |
| Size / Dimension Width | 0.087 in |
| Temperature Coefficient | 2.5 ppm/°C |
| Tolerance | 0.1 % |
