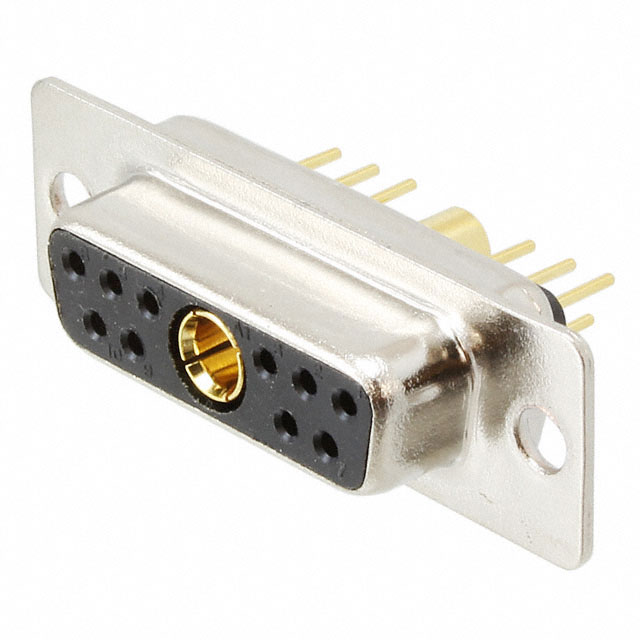

COMBINATION LAYOUT D SUB CONNECTOR, SEAL-D, IP68, SEAL-D 681S SERIES, DA-11W1, RECEPTACLE
681S11W1203L001
ActiveNorComp Inc.
COMBINATION LAYOUT D SUB CONNECTOR, SEAL-D, IP68, SEAL-D 681S SERIES, DA-11W1, RECEPTACLE
Description
General part information
681S Series
11 (10 + 1 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | 681S11W1203L001 |
|---|---|
| Color | Black |
| Connector Layout | DA, A |
| Connector Style | Combo, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0 |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal, Power |
| Current Rating Options | 20/40A, 5A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Finish | Nickel Plated |
| Flange Feature | Shell (Unthreaded), Housing |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Through Hole |
| Number of Positions (Normal) | 10 |
| Number of Positions (Power) | 1 |
| Number of Positions (Total) | 11 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Part Code | 11W1, 11C1 |
| Shell Material | Steel |
| Shell Size | 2 |
| Termination | Solder |
