CCX-1075
ActiveAmgis, LLC
CURR SENSE XFMR 1:2500 75A TH
CCX-1075
ActiveAmgis, LLC
CURR SENSE XFMR 1:2500 75A TH
Description
General part information
CCX-1075

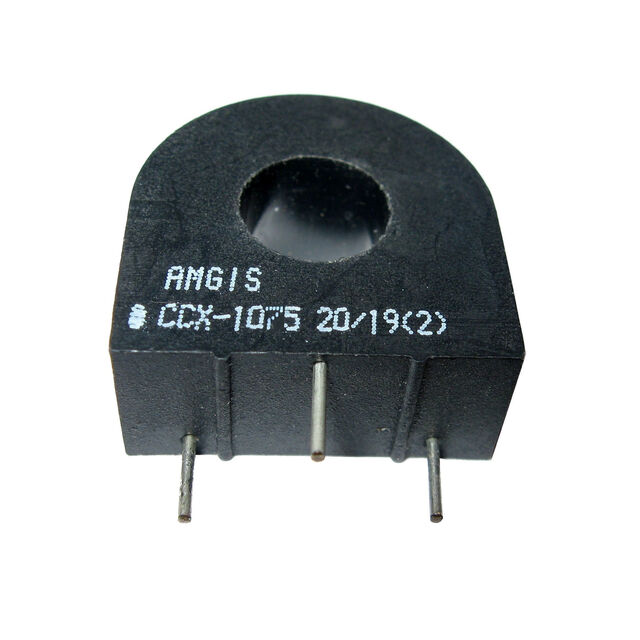

75 A 1:2500 Current Sense Transformer 50Hz ~ 60Hz 218Ohm Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | CCX-1075 |
|---|---|
| Current Rating | 75 A |
| DC Resistance (DCR) | 218 Ohm |
| Frequency Range (Max) | 60 Hz |
| Frequency Range (Min) | 50 Hz |
| Height - Seated (Max) | 1.189 in |
| Mounting Type | Through Hole |
| Size / Dimension Length | 1.189 in |
| Size / Dimension Width | 0.563 in |
| Termination Style | PC Pin |
| Turns Ratio - Primary | 1 |
| Turns Ratio - Secondary | 2500 |
| Type | Non-Invasive (Solid Core) |
