00594800

Active

Menbers

CONN PLUG FMALE 7POS SCREW

Deep-Dive with AI

Search across all available documentation for this part.

00594800

Active

Menbers

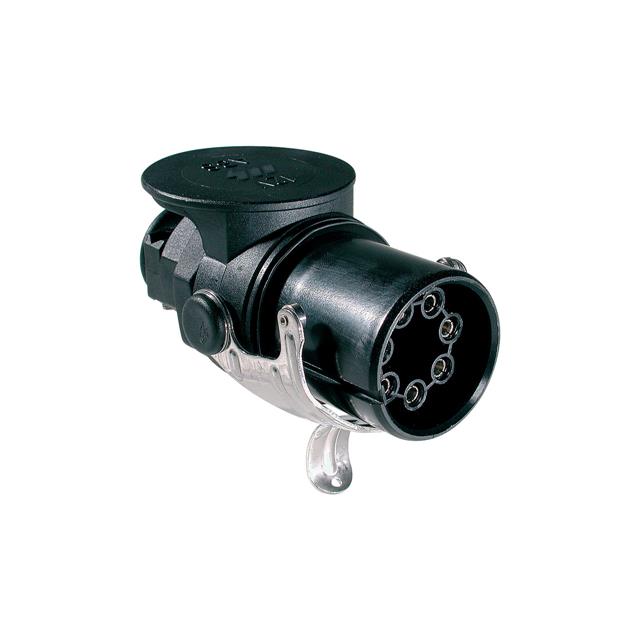

CONN PLUG FMALE 7POS SCREW

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	10	$ 25.89

Description

General part information

- Series

7 Position Circular Connector Plug, Female Sockets Screw

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	00594800	- Series

	-	-
1st Connector Gender	-	Female Sockets
1st Connector Mounting Type	-	Free Hanging (In-Line)
1st Connector Number of Positions	-	5 - 15
1st Connector Number of Positions Loaded	-	All
1st Connector Type	-	Plug
2nd Connector Gender	-	Female Sockets, Female Sockets (2)
2nd Connector Mounting Type	-	Free Hanging (In-Line)
2nd Connector Number of Positions	-	5 - 15
2nd Connector Number of Positions Loaded	-	All
2nd Connector Type	-	Plug
2nd Connector Type	-	2
Accessory Type	-	Disconnect Switch, Grommet
Applications	Industrial, Automotive	Industrial, Automotive
Assembly Configuration	-	Standard
Backshell Material, Plating	Plastic	Plastic, Aluminum
Cable Material	-	Polyurethane (PUR)
Cable Opening	-	15.5 mm
Cable Opening	-	0.61 in
Cable Type	-	Round Coiled
Color	Black	Black, Silver, Green
Connector Type	Female Sockets, Plug	Female Sockets, Plug, Receptacle, Male Pins
Contact Finish - Mating	-	Nickel
Contact Material	Brass	Brass
Fastening Type	Latch Lock	Latch Lock, Push-Pull, Bayonet Lock
Features	Backshell	Backshell, Cap (Cover), Strain Relief
For Use With/Related Products	-	Batteries, Vehicle Connectors
Ingress Protection	-	IP65 - Dust Tight, Water Resistant, IP54 - Dust Protected, Water Resistant
Insert Material	Plastic	Plastic
Length	-	4.5 m
Length	-	14.76 '
Material	-	Rubber
Mounting Feature	-	Flange
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Panel Mount, Right Angle
Number of Positions	7	7 - 15
Orientation	Keyed	Keyed, N
Primary Material	Plastic	Plastic, Metal
Shell Material	Plastic	Plastic, Aluminum
Shielding	-	Unshielded
Termination	Screw	Screw, Solder Tabs, Crimp
Usage	-	Industrial Environments
Voltage Rating	24 VDC	12 - 24 VDC

- Series

CIRC CBL 7POS PLUG TO PLUG

Part	Ingress Protection	2nd Connector Type	Color	2nd Connector Gender	1st Connector Number of Positions	2nd Connector Mounting Type	Assembly Configuration	Shielding	1st Connector Type	1st Connector Gender	Usage	Cable Type	Cable Material	1st Connector Number of Positions Loaded	2nd Connector Number of Positions Loaded	1st Connector Mounting Type	2nd Connector Number of Positions	Applications	Voltage Rating	Features	Primary Material	Mounting Type	Connector Type	Termination	Shell Material	Backshell Material, Plating	Orientation	Fastening Type	Insert Material	Mounting Feature	Contact Material	Contact Finish - Mating	Number of Positions	For Use With/Related Products	Accessory Type
Menbers 00558785	IP65 - Dust Tight, Water Resistant	Plug	Black	Female Sockets	7	Free Hanging (In-Line)	Standard	Unshielded	Plug	Female Sockets	Industrial Environments	Round Coiled	Polyurethane (PUR)	All	All	Free Hanging (In-Line)
Menbers 00556770	IP65 - Dust Tight, Water Resistant	Plug	Black	Female Sockets	5	Free Hanging (In-Line)	Standard	Unshielded	Plug	Female Sockets	Industrial Environments	Round Coiled	Polyurethane (PUR)	All	All	Free Hanging (In-Line)	5
Menbers 00594770			Black					Unshielded										Automotive, Industrial	24 VDC	Backshell	Plastic	Free Hanging (In-Line)	Female Sockets, Plug	Screw	Plastic	Plastic	Keyed	Latch Lock	Plastic
Menbers 00585400	IP54 - Dust Protected, Water Resistant		Black					Unshielded										Automotive, Industrial	24 VDC	Backshell, Cap (Cover)	Plastic	Free Hanging (In-Line), Panel Mount	Male Pins, Receptacle	Solder Tabs	Plastic	Plastic	N	Push-Pull	Plastic	Flange	Brass	Nickel	7
Menbers 00594870			Black															Automotive, Industrial	24 VDC	Backshell	Plastic	Free Hanging (In-Line)	Female Sockets, Plug	Screw	Plastic	Plastic	Keyed	Latch Lock	Plastic		Brass		7
Menbers 00586870			Black					Unshielded										Automotive, Industrial	24 VDC	Backshell, Cap (Cover)	Plastic	Free Hanging (In-Line), Panel Mount, Right Angle	Male Pins, Receptacle	Crimp	Plastic	Plastic	Keyed	Bayonet Lock	Plastic	Flange
Menbers 00250962
Menbers 00591100			Silver					Unshielded										Automotive, Industrial	24 VDC	Backshell, Strain Relief	Metal	Free Hanging (In-Line)	Female Sockets, Male Pins, Plug	Solder Tabs	Aluminum	Aluminum	Keyed	Push-Pull			Brass	Nickel	7
Menbers 08075160																																		Batteries	Disconnect Switch
Menbers 00511300			Black					Unshielded										Automotive, Industrial	12 V	Backshell, Strain Relief	Plastic	Free Hanging (In-Line)	Male Pins, Plug	Screw	Plastic	Plastic	Keyed	Bayonet Lock	Plastic		Brass	Nickel	13
