WP7104LSRD
ObsoleteKingbright

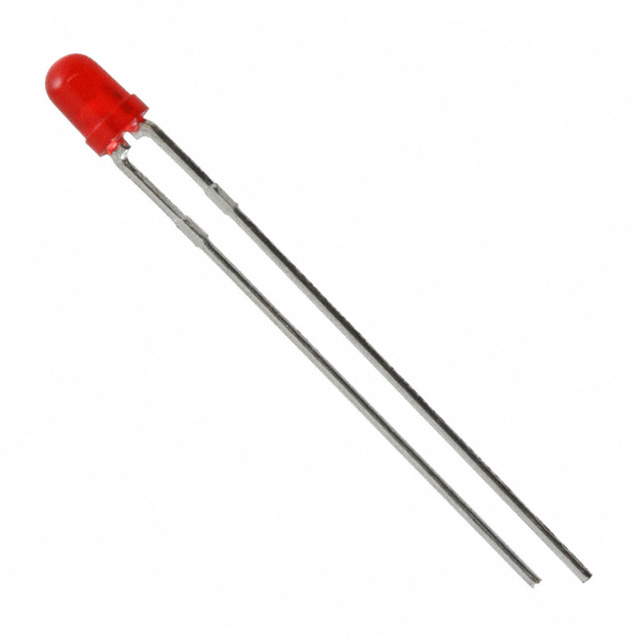

LED RED DIFFUSED T-1 T/H
WP7104LSRD
ObsoleteKingbright
LED RED DIFFUSED T-1 T/H
Description
General part information
WP7104LSRD
Red 640nm LED Indication - Discrete 1.65V Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | WP7104LSRD |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 2 mA |
| Height (Max) | 5.9 mm |
| Lens Color | Red |
| Lens Size | 3 mm |
| Lens Size (Code) | T-1 |
| Lens Style | Round, Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 20 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Package Name | T-1 |
| Size / Dimension Diameter | 2.9 mm |
| Viewing Angle | 40 ° |
| Voltage - Forward (Vf) (Typ) | 1.65 V |
| Wavelength - Dominant | 640 nm |
| Wavelength - Peak | 660 nm |
