382LX563M035N082
ActiveCornell Dubilier Knowles
CAP ALUM 56000UF 20% 35V SNAP TH
382LX563M035N082
ActiveCornell Dubilier Knowles
CAP ALUM 56000UF 20% 35V SNAP TH
Description
General part information
382LX563M035N082

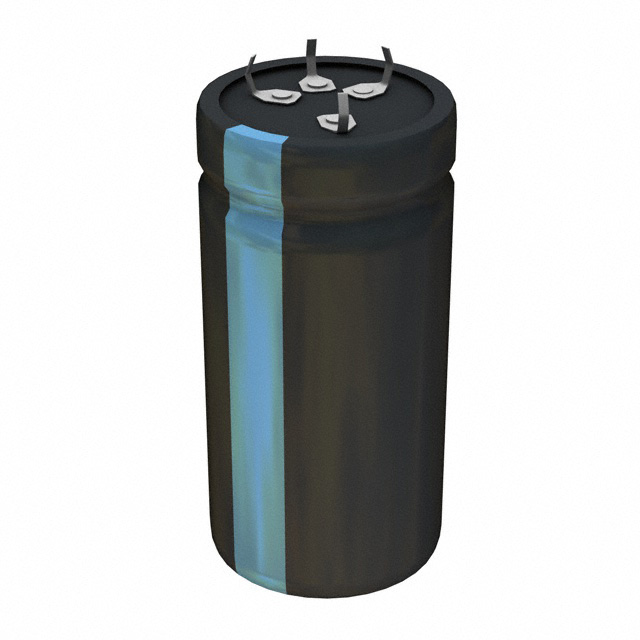

56000 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 4 Lead 3000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 382LX563M035N082 |
|---|---|
| Applications | General Purpose |
| Capacitance | 56000 µF |
| Height - Seated (Max) | 3.228 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 4 Leads |
| Package Name | Radial, Can - Snap-In |
| Polarization | Polar |
| Ripple Current | 10.3 A, 11.9 A |
| Size / Dimension Diameter | 1.575 in |
| Tolerance | 20 % |
| Voltage - Rated | 35 V |
