CB1.37-IPX-SARFGT-6IN
ActiveLighthorse Technologies, Inc
CBL ASSY IPEX MHF1-RPSMA J-PL 6"
CB1.37-IPX-SARFGT-6IN
ActiveLighthorse Technologies, Inc
CBL ASSY IPEX MHF1-RPSMA J-PL 6"
Description
General part information
CB1.37-IPX-SARFGT-6IN

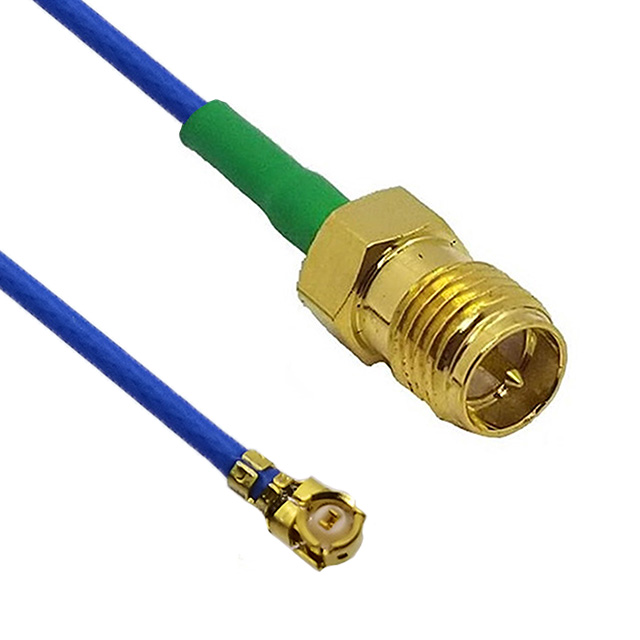

Cable Assembly Coaxial IPEX MHF1 to RP-SMA 1.37mm OD Coaxial Cable 6.000" (152.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | CB1.37-IPX-SARFGT-6IN |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | IPEX MHF1 Plug, U.FL (UMCC), Right Angle, I-PEX MHF1 Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Outer Diameter | 1.37 mm |
| Cable Type | Coaxial Cable, OD Coaxial Cable |
| Cable Type Size | 1.37 |
| Color | Blue |
| Features | Shielded |
| Frequency - Max | 6000 MHz |
| Length | 0.5 ft |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | IPEX MHF1 to RP-SMA, I-PEX MHF1 to RP-SMA |
