828549-6
ObsoleteTE Connectivity AMP Connectors

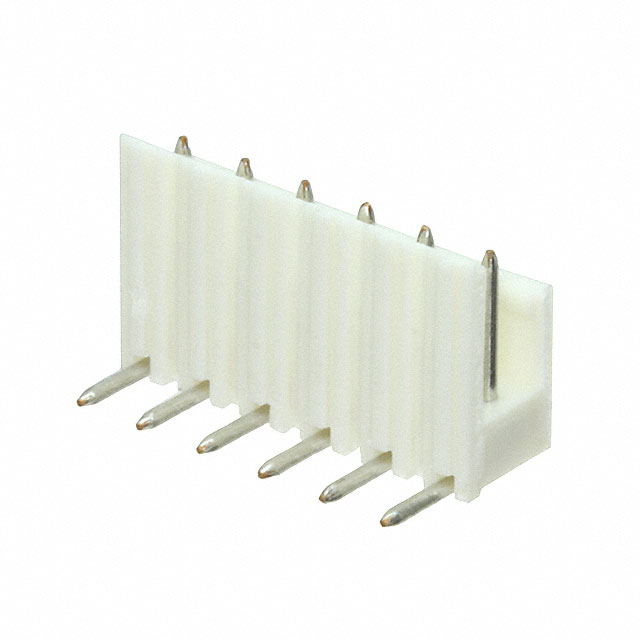

CONN HEADER R/A 6POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
828549-6
ObsoleteTE Connectivity AMP Connectors
CONN HEADER R/A 6POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 828549-6 | 828549 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Post | 2 çm | 2 çm |
| Contact Finish Thickness - Post | 78.7 çin | 78.7 çin |
| Contact Length - Mating | 5.21 mm | 5.21 mm |
| Contact Length - Mating | 0.205 in | 0.205 in |
| Contact Length - Post | 0.114 in | 0.114 in |
| Contact Length - Post | 2.9 mm | 2.9 mm |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Friction Lock | Friction Lock, Push-Pull |
| Insulation Color | Natural | Natural |
| Insulation Height | 4.9 mm | 4.9 mm |
| Insulation Height | 0.193 in | 0.193 in |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 6 | 2 - 6 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Shrouded - 2 Wall | Shrouded - 2 Wall, Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
828549 Series
CONN HEADER R/A 2POS 2.54MM
| Part | Contact Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions Loaded | Contact Shape | Insulation Height | Insulation Height | Number of Positions | Insulation Material | Pitch - Mating | Pitch - Mating | Fastening Type | Contact Material | Connector Type | Termination | Shrouding | Material Flammability Rating | Insulation Color | Mounting Type | Number of Rows | Contact Length - Mating | Contact Length - Mating | Contact Length - Post | Contact Length - Post | Contact Finish - Post | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 828549-2 | Male Pin | 2 çm | 78.7 çin | All | Circular | 4.9 mm | 0.193 in | 2 | Polybutylene Terephthalate (PBT), Glass Filled | 0.1 in | 2.54 mm | Friction Lock | Copper Alloy | Header | Solder | Shrouded - 2 Wall | UL94 V-0 | Natural | Through Hole, Right Angle | 1 | 5.21 mm | 0.205 in | 0.114 in | 2.9 mm | Tin | Board to Cable/Wire |
TE Connectivity AMP Connectors 828549-6 | Male Pin | 2 çm | 78.7 çin | All | Circular | 4.9 mm | 0.193 in | 6 | Polybutylene Terephthalate (PBT), Glass Filled | 0.1 in | 2.54 mm | Friction Lock | Copper Alloy | Header | Solder | Shrouded - 2 Wall | UL94 V-0 | Natural | Through Hole, Right Angle | 1 | 5.21 mm | 0.205 in | 0.114 in | 2.9 mm | Tin | Board to Cable/Wire |
TE Connectivity AMP Connectors 828549-4 | Male Pin | All | Circular | 4.9 mm | 0.193 in | 4 | Polybutylene Terephthalate (PBT), Glass Filled | 0.1 in | 2.54 mm | Push-Pull | Copper Alloy | Header | Solder | Shrouded - 4 Wall | Natural | Through Hole, Right Angle | 1 | 0.114 in | 2.9 mm | Board to Cable/Wire |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.90 | |
| 10 | $ 0.86 | |||
| 100 | $ 0.71 | |||
| 650 | $ 0.64 | |||
| 1300 | $ 0.55 | |||
| 5200 | $ 0.48 | |||
| 10400 | $ 0.47 | |||
Description
General part information
828549 Series
Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm)
