Description
General part information
M7-187-175-342

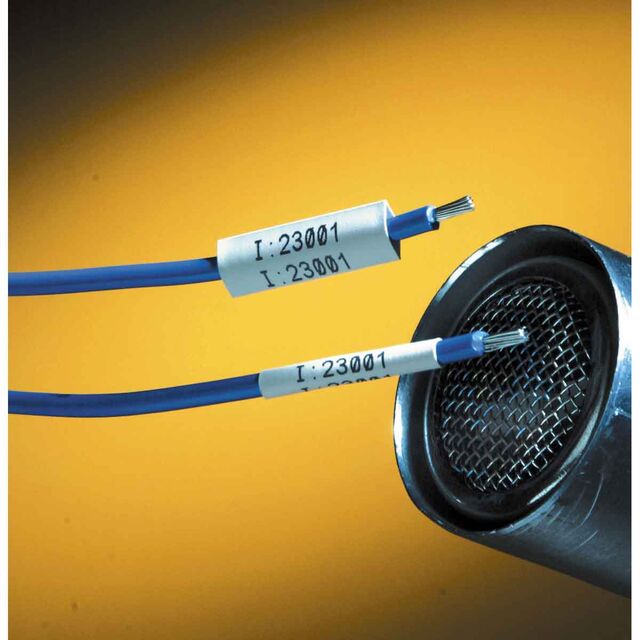

White Heat Shrinkable Label 1.75" W x 0.34" H (44.5mm x 8.5mm); Cable O.D. 0.06" ~ 0.15" (1.6mm ~ 3.8mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | M7-187-175-342 |
|---|---|
| Cable O.D. (Max) | 0.15 " |
| Cable O.D. (Min) | 0.06 " |
| Color | White |
| Label Height | 0.34 " |
| Label Type | Heat Shrinkable |
| Label Width | 1.75 in |
| Material | Polyolefin |
| Operating Temperature (Max) | 135 °C |
| Operating Temperature (Min) | -55 °C |
