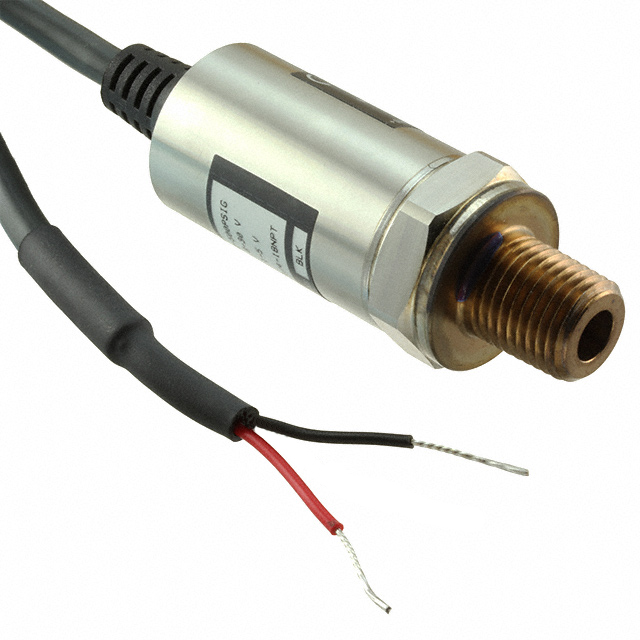

M5231-000005-05KPG

Active

TE Connectivity Measurement Specialties

TRANSDUCER 0.5-4.5VDC 50PSI 2FT

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

TRANSDUCER 0.5-4.5VDC 50PSI 2FT

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Pressure Type	Output [Min]	Output [Max]	Termination Style	Operating Pressure	Operating Pressure	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Maximum Pressure	Maximum Pressure	Accuracy	Package / Case	Output Type	Port Style	Maximum Pressure [Max]	Maximum Pressure [Max]
TE Connectivity Measurement Specialties M5231-000005-300PG	Industrial Automation	Vented Gauge	0.5 V	4.5 V	Cable	300 PSI	2068.43 kPa	NPT	0.25 "	6.35 mm	Male	4.75 V	5.25 V	125 °C	-40 °C	Temperature Compensated	600 PSI	4136.85 kPa	0.25 %	Cylinder	Analog Voltage	Threaded
TE Connectivity Measurement Specialties M5231-000005-050PG	Industrial Automation	Vented Gauge	0.5 V	4.5 V	Cable	50 PSI	344.74 kPa	NPT	0.25 "	6.35 mm	Male	4.75 V	5.25 V	125 °C	-40 °C	Temperature Compensated			0.25 %	Cylinder	Analog Voltage	Threaded	100 PSI	689.48 kPa
TE Connectivity Measurement Specialties M5231-000005-05KPG	Industrial Automation	Gauge	0.5 V	4.5 V	Cable 2'	5000 PSI	34473.79 kPa	NPT	0.25 "	6.35 mm	Male			125 °C	-40 °C				0.25 %		Analog Voltage	Threaded
TE Connectivity Measurement Specialties M5231-000005-500PG	Industrial Automation	Vented Gauge	0.5 V	4.5 V	Cable	500 PSI	3447.38 kPa	NPT	0.25 "	6.35 mm	Male	4.75 V	5.25 V	125 °C	-40 °C	Temperature Compensated			0.25 %	Cylinder	Analog Voltage	Threaded	1000 PSI	6894.76 kPa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	40	$ 121.15

General part information

TRANSDUCER 0.5-4.5VDC 50PSI 2FT

Technical documentation and resources
