CT2075-50-4

Active

Cal Test Electronics

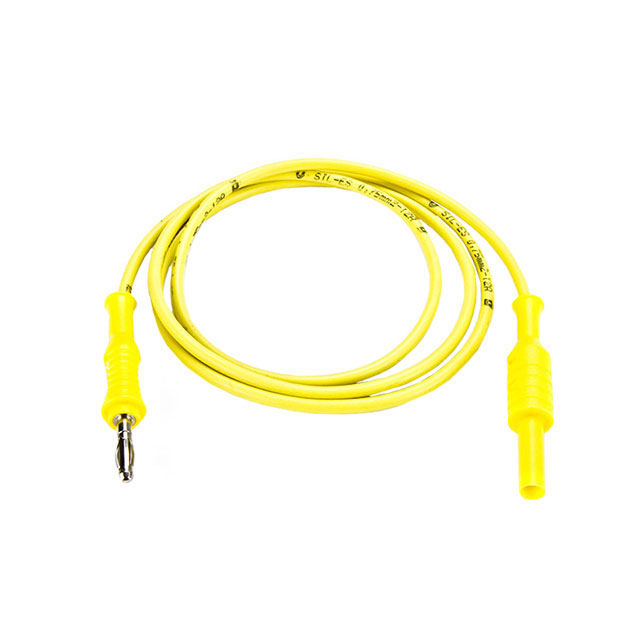

TEST LEAD BANANA TO BANANA 19.7"

Deep-Dive with AI

Search across all available documentation for this part.

CT2075-50-4

Active

Cal Test Electronics

TEST LEAD BANANA TO BANANA 19.7"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CT2075-50-4

1st Connector	Banana Plug, Single
2nd Connector	Banana Socket (Jack), Single, Sheathed
Cable Length	50 cm
Cable Length	19.7 in
Configuration	Banana to Banana
Contents	Yellow, 1 Lead
Current Rating (Amps)	12 A
Material - Insulation	Silicone
Stacking Method	Non Stackable
Type	Patch Cord
Voltage - Rated	33 VAC, 70 V
Wire Gauge	18 AWG

CT2075 Series

Part	Type	Cable Length	Cable Length	Voltage - Rated	Stacking Method	Material - Insulation	2nd Connector	Wire Gauge	Current Rating (Amps)	Configuration	1st Connector	Contents	Contents [custom]	Cable Length [x]	Cable Length [x]
Cal Test Electronics CT2075-25-6	Patch Cord	250 mm	9.8 in	33 VAC 70 V	Non Stackable	Silicone	Banana Socket (Jack) Single Sheathed	18 AWG	12 A	Banana to Banana	Banana Plug Single	1 Lead Blue
Cal Test Electronics CT2075-100-6	Patch Cord	100 cm	39.4 in	33 VAC 70 V	Non Stackable	Silicone	Banana Socket (Jack) Single Sheathed	18 AWG	12 A	Banana to Banana	Banana Plug Single	1 Lead Blue
Cal Test Electronics CT2075-150-2	Patch Cord	1.5 m	59.1 in	33 VAC 70 V	Non Stackable	Silicone	Banana Socket (Jack) Single Sheathed	18 AWG	12 A	Banana to Banana	Banana Plug Single	Red	1
Cal Test Electronics CT2075-25-9	Patch Cord	250 mm	9.8 in	33 VAC 70 V	Non Stackable	Silicone	Banana Socket (Jack) Single Sheathed	18 AWG	12 A	Banana to Banana	Banana Plug Single	1 Lead White
Cal Test Electronics CT2075-100-2	Patch Cord	100 cm	39.4 in	33 VAC 70 V	Non Stackable	Silicone	Banana Socket (Jack) Single Sheathed	18 AWG	12 A	Banana to Banana	Banana Plug Single	Red	1
Cal Test Electronics CT2075-150-0	Patch Cord	1.5 m	59.1 in	33 VAC 70 V	Non Stackable	Silicone	Banana Socket (Jack) Single Sheathed	18 AWG	12 A	Banana to Banana	Banana Plug Single	1 Lead Black
Cal Test Electronics CT2075-100-9	Patch Cord	100 cm	39.4 in	33 VAC 70 V	Non Stackable	Silicone	Banana Socket (Jack) Single Sheathed	18 AWG	12 A	Banana to Banana	Banana Plug Single	1 Lead White
Cal Test Electronics CT2075-50-6	Patch Cord	50 cm	19.7 in	33 VAC 70 V	Non Stackable	Silicone	Banana Socket (Jack) Single Sheathed	18 AWG	12 A	Banana to Banana	Banana Plug Single	1 Lead Blue
Cal Test Electronics CT2075-10-9	Patch Cord			33 VAC 70 V	Non Stackable	Silicone	Banana Socket (Jack) Single Sheathed	18 AWG	12 A	Banana to Banana	Banana Plug Single	1 Lead White		4 in	101.6 mm
Cal Test Electronics CT2075-10-0	Patch Cord			33 VAC 70 V	Non Stackable	Silicone	Banana Socket (Jack) Single Sheathed	18 AWG	12 A	Banana to Banana	Banana Plug Single	1 Lead Black		4 in	101.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 9.65

Description

General part information

CT2075 Series

19.7" (500.00mm) Banana Plug, Single To Banana Socket (Jack), Single, Sheathed Patch Cord 33VAC, 70VDC

Documents

Technical documentation and resources

No documents available
