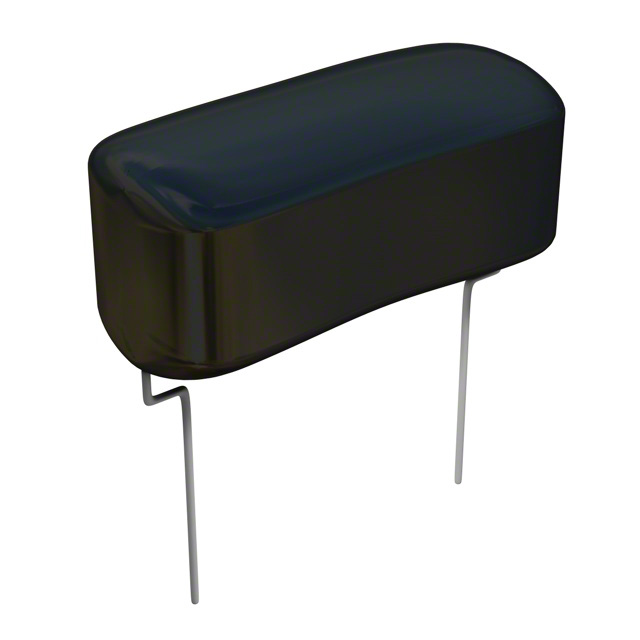

DPFF16S27J-F
ActiveCornell Dubilier Knowles
CAP FILM 0.027UF 5% 1.6KVDC RAD
DPFF16S27J-F
ActiveCornell Dubilier Knowles
CAP FILM 0.027UF 5% 1.6KVDC RAD
Description
General part information
DPFF16S27J-F
0.027 µF Film Capacitor 500V 1600V (1.6kV) Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | DPFF16S27J-F |
|---|---|
| Applications | High Pulse, DV/DT |
| Capacitance | 0.027 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 0.949 in |
| Lead Spacing | 1.094 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 1.701 in |
| Size / Dimension Width | 0.949 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - AC | 500 V |
| Voltage Rating - DC | 1600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
