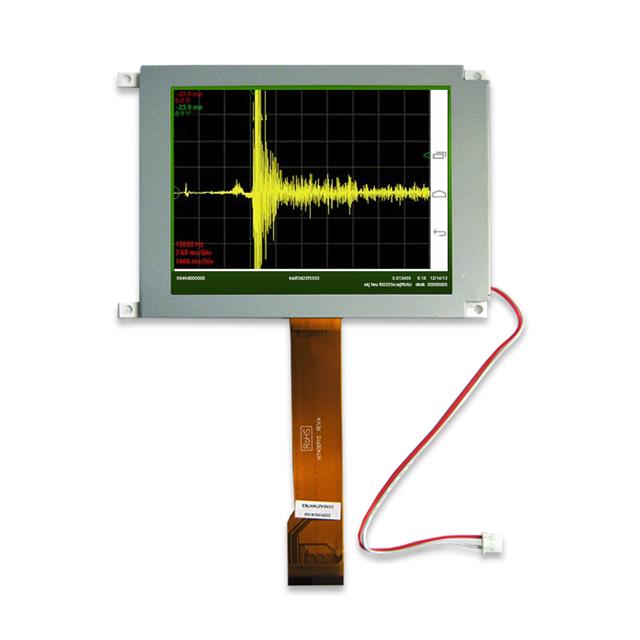

NHD-5.7-320240WFB-ATXI#-1
ObsoleteNewhaven Display Intl
LCD TFT DISPLAY 24BIT RGB
Deep-Dive with AI
Search across all available documentation for this part.
NHD-5.7-320240WFB-ATXI#-1
ObsoleteNewhaven Display Intl
LCD TFT DISPLAY 24BIT RGB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-5.7-320240WFB-ATXI#-1 |
|---|---|
| Backlight | LED - White |
| Diagonal Screen Size | 5.7 in |
| Diagonal Screen Size | 144.78 mm |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels | QVGA |
| Dot Pixels [x] | 320 pixels |
| Dot Pixels [y] | 240 pixels |
| Dot Size [x] | 0.36 mm |
| Dot Size [y] | 0.36 mm |
| Graphics Color | Green, Red, Blue |
| Interface | Parallel |
| Interface | 24 Bit |
| Viewing Area [x] | 118.28 mm |
| Viewing Area [y] | 88.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NHD-5.7-320240WFB-ATXI#-1
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel, 24-Bit (RGB) 5.7" (144.78mm) 320 x 240 (QVGA)
Documents
Technical documentation and resources
