Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1861808 | MCO Series |
|---|---|---|
| Color | Green | Black, Green |
| Contact Mating Finish | Tin | Tin |
| Current - IEC | 8 A | 8 A |
| Current - UL | 8 A | 8 A |
| Header Orientation | Right Angle, Vertical | 90°, Right Angle, Right Angle, Vertical |
| Header Orientation | 90 ° | 90 ° |
| Insulation Height | 39.49 mm | 35.68 - 39.49 mm |
| Insulation Height | 1.555 in | 1.405 - 1.555 in |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Levels | 1 | 1 |
| Number of Positions | 10 | 4 - 10 |
| Pitch [x] | 0.15 in | 0.138 - 0.15 in |
| Pitch [x] | 3.81 mm | 3.5 - 3.81 mm |
| Positions Per Level | 10 | 4 - 10 |
| Termination Style | Solder | Solder |
| Type | Header, Male Pins, Shrouded (2 Side) | Header, Male Pins, Shrouded (4 Side), Header, Male Pins, Shrouded (2 Side) |
| Voltage - IEC | 200 V | 200 V |
| Voltage - UL | 300 V | 300 V |
MCO Series

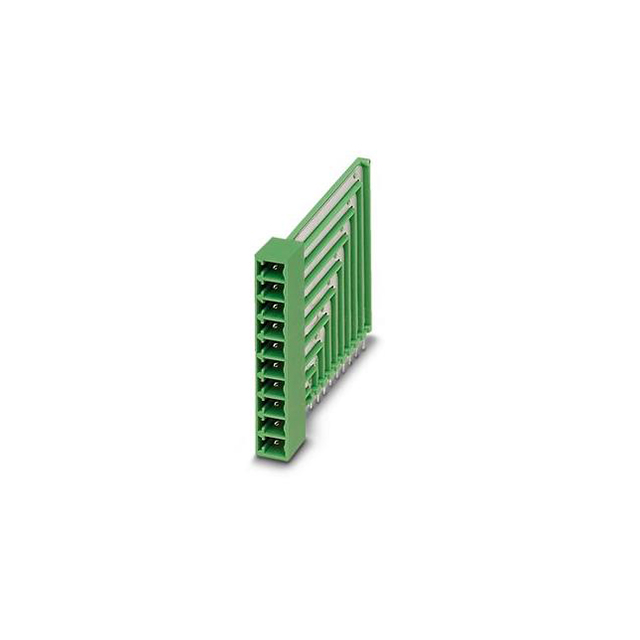

Pluggable Terminal Blocks 10 Pos 3.81mm pitch Through Hole Header
| Part | Color | Mounting Type | Pitch [x] | Pitch [x] | Type | Termination Style | Number of Levels | Voltage - UL | Number of Positions | Current - UL | Header Orientation | Positions Per Level | Contact Mating Finish | Material Flammability Rating | Insulation Height | Insulation Height | Header Orientation | Current - IEC | Voltage - IEC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2200047 | Black | Through Hole | 3.5 mm | 0.138 in | Header, Male Pins, Shrouded (4 Side) | Solder | 1 | 300 V | 4 | 8 A | 90°, Right Angle | 4 | |||||||
Phoenix Contact 1861808 | Green | Through Hole | 3.81 mm | 0.15 in | Header, Male Pins, Shrouded (2 Side) | Solder | 1 | 300 V | 10 | 8 A | Right Angle, Vertical | 10 | Tin | UL94 V-0 | 39.49 mm | 1.555 in | 90 ° | 8 A | 200 V |
Phoenix Contact 1861714 | Green | Through Hole | 3.81 mm | 0.15 in | Header, Male Pins, Shrouded (2 Side) | Solder | 1 | 300 V | 9 | 8 A | Right Angle, Vertical | 9 | Tin | UL94 V-0 | 35.68 mm | 1.405 in | 90 ° | 8 A | 200 V |
