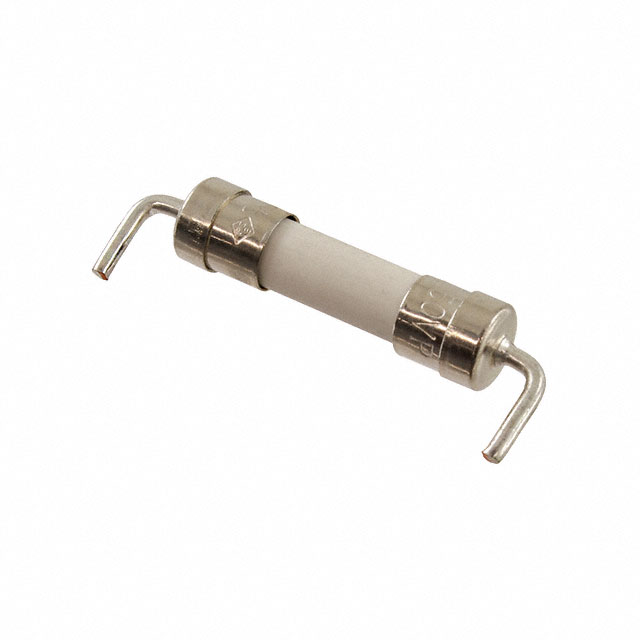

0477005.MXF34P
ActiveLITTELFUSE
FUSE CERM 5A 500VAC 400VDC 5X20
0477005.MXF34P
ActiveLITTELFUSE
FUSE CERM 5A 500VAC 400VDC 5X20
Description
General part information
0477005.MXF34P
5 A 500 V AC 400 V DC Fuse Cartridge, Ceramic Requires Holder 5mm x 20mm
Technical Specifications
Parameters and characteristics for this part
| Specification | 0477005.MXF34P |
|---|---|
| Approval Agency | cURus, SEMKO, PSE |
| Breaking Capacity (AC) | 100 A |
| Breaking Capacity (DC) | 500 A |
| Current Rating | 5 A |
| DC Cold Resistance | 13.7 Ohms |
| Fuse Type | Cartridge, Ceramic |
| Melting I²t | 76.5 |
| Mounting Type | Requires Holder |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 5mm x 20mm |
| Package Diameter | 5 mm, 20 mm |
| Package Height | 0 mm |
| Package Length | 5 mm |
| Package Width | 20 mm |
| Response Time | Slow Blow |
| Size / Dimension Diameter | 0.197 in |
| Size / Dimension Length | 0.787 in |
| Voltage Rating - AC | 500 V |
| Voltage Rating - DC | 400 V |
