Q-010150001002M

Active

Amphenol Custom Cable

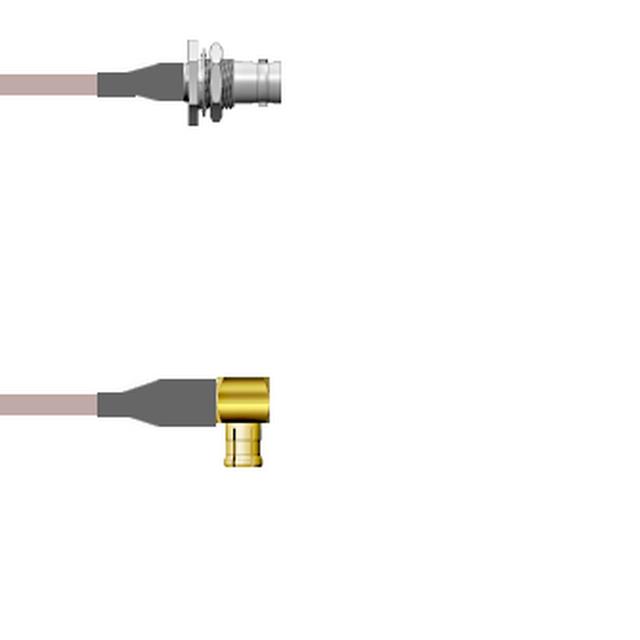

CBL ASSY BNC-MCX JACK-PLUG 6.6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-010150001002M

Active

Amphenol Custom Cable

CBL ASSY BNC-MCX JACK-PLUG 6.6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Q-010150001002M	Q-010150 Series

1st Connector	BNC Jack	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount	Panel Mount
1st Contact Gender	Female	Female
2nd Connector	MCX Plug, Right Angle	MCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male
Cable Type	RG-178	RG-178
Color	Copper	Copper
Features	Shielded	Shielded
Frequency - Max [Max]	4 GHz	4 GHz
Length	6.6 ft	3.3 - 9.8 '
Length	78.7 in	3 - 118.1 in
Length	2 m	1 - 1200 m
Length	-	9.843 "
Length	-	250 - 457.2 mm
Length	-	457.2 mm
Overall Impedance	50 Ohms	50 Ohms
Style	BNC to MCX	BNC to MCX

Q-010150 Series

CBL ASSY BNC-MCX JACK-PLUG 8.2'

Part	Frequency - Max [Max]	2nd Connector	2nd Contact Gender	1st Connector Mounting Feature	Style	Color	1st Contact Gender	2nd Connector Mounting Type	Overall Impedance	Cable Type	Length	Length	Length	1st Connector	1st Connector Mounting Type	Features	Length [x]	Length [x]
Amphenol Custom Cable Q-0101500012.5M	4 GHz	MCX Plug, Right Angle	Male	Bulkhead - Front Side Nut	BNC to MCX	Copper	Female	Free Hanging (In-Line)	50 Ohms	RG-178	8.2 '	98.4 in	2.5 m	BNC Jack	Panel Mount	Shielded
Amphenol Custom Cable Q-010150001.25M	4 GHz	MCX Plug, Right Angle	Male	Bulkhead - Front Side Nut	BNC to MCX	Copper	Female	Free Hanging (In-Line)	50 Ohms	RG-178				BNC Jack	Panel Mount	Shielded	9.843 "	250 mm
Amphenol Custom Cable Q-010150001006i	4 GHz	MCX Plug, Right Angle	Male	Bulkhead - Front Side Nut	BNC to MCX	Copper	Female	Free Hanging (In-Line)	50 Ohms	RG-178		6 in	152.4 mm	BNC Jack	Panel Mount	Shielded
Amphenol Custom Cable Q-010150001012i	4 GHz	MCX Plug, Right Angle	Male	Bulkhead - Front Side Nut	BNC to MCX	Copper	Female	Free Hanging (In-Line)	50 Ohms	RG-178		12 "	304.8 mm	BNC Jack	Panel Mount	Shielded
Amphenol Custom Cable Q-010150001.75M	4 GHz	MCX Plug, Right Angle	Male	Bulkhead - Front Side Nut	BNC to MCX	Copper	Female	Free Hanging (In-Line)	50 Ohms	RG-178		29.53 "	750 mm	BNC Jack	Panel Mount	Shielded
Amphenol Custom Cable Q-010150001024i	4 GHz	MCX Plug, Right Angle	Male	Bulkhead - Front Side Nut	BNC to MCX	Copper	Female	Free Hanging (In-Line)	50 Ohms	RG-178		24 "	609.6 mm	BNC Jack	Panel Mount	Shielded
Amphenol Custom Cable Q-010150001084i	4 GHz	MCX Plug, Right Angle	Male	Bulkhead - Front Side Nut	BNC to MCX	Copper	Female	Free Hanging (In-Line)	50 Ohms	RG-178	7 ft	84 in	2.1 m	BNC Jack	Panel Mount	Shielded
Amphenol Custom Cable Q-010150001002M	4 GHz	MCX Plug, Right Angle	Male	Bulkhead - Front Side Nut	BNC to MCX	Copper	Female	Free Hanging (In-Line)	50 Ohms	RG-178	6.6 ft	78.7 in	2 m	BNC Jack	Panel Mount	Shielded
Amphenol Custom Cable Q-010150001048i	4 GHz	MCX Plug, Right Angle	Male	Bulkhead - Front Side Nut	BNC to MCX	Copper	Female	Free Hanging (In-Line)	50 Ohms	RG-178	4 ft	48 in	1200 mm	BNC Jack	Panel Mount	Shielded
Amphenol Custom Cable Q-010150001108i	4 GHz	MCX Plug, Right Angle	Male	Bulkhead - Front Side Nut	BNC to MCX	Copper	Female	Free Hanging (In-Line)	50 Ohms	RG-178	9 ft	108 in	2.7 m	BNC Jack	Panel Mount	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 73.95
		25	$ 68.88
		50	$ 63.80
		100	$ 59.46
		250	$ 55.83

Description

General part information

Q-010150 Series

Cable Assembly Coaxial BNC to MCX RG-178 78.7" (2.0m) 6.6'

Documents

Technical documentation and resources

No documents available
