Connectors, Interconnects

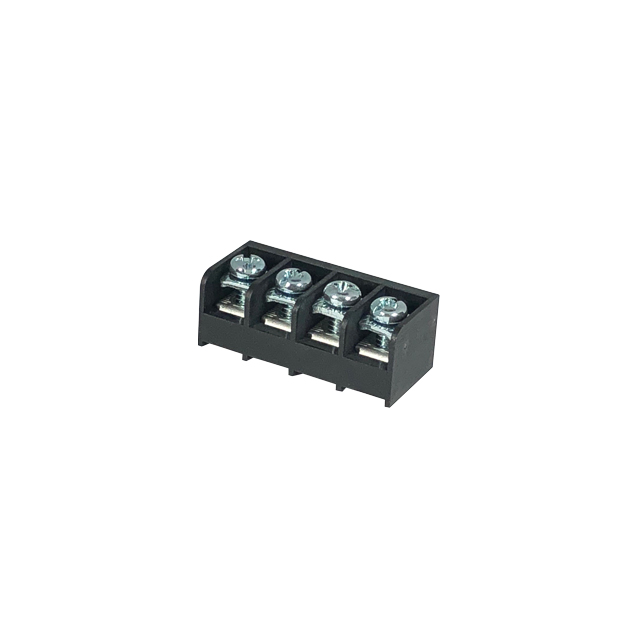

DT-39-B01M-04(R)
ActiveDinkle Corporation, USA
3 WALL BARRIER STRP 4P, 0.325"
Connectors, Interconnects
DT-39-B01M-04(R)
ActiveDinkle Corporation, USA
3 WALL BARRIER STRP 4P, 0.325"
Technical Specifications
Parameters and characteristics for this part
| Specification | DT-39-B01M-04(R) |
|---|---|
| Barrier Type | 3 Wall (Tri) |
| Bottom Termination | PC Pin |
| Color | Black |
| Current Rating | 10 A |
| Number of Circuits | 4 |
| Number of Rows | 1 |
| Number of Wire Entries | 4 |
| Pitch | 0.325 in |
| Terminal Block Type | Barrier Block |
| Voltage Rating | 300 VAC/DC |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.02 | <1d |
| 10 | $ 2.27 | |||
| 50 | $ 1.97 | |||
| 100 | $ 1.81 | |||
| 250 | $ 1.66 | |||
| 500 | $ 1.51 | |||
| 1000 | $ 1.36 | |||
CAD
3D models and CAD resources for this part
Description
General part information
DT-39-B01M-04(R)
4 Circuit 0.325" (8.26mm) Barrier Block Connector
