1899391
ActivePhoenix Contact
TERM BLK HEADER 13POS GREEN
1899391
ActivePhoenix Contact
TERM BLK HEADER 13POS GREEN
Description
General part information
1899391

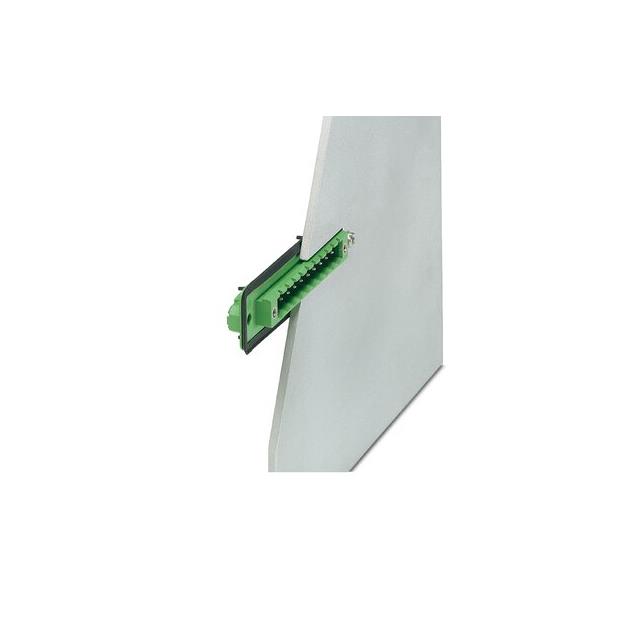

13 Position Terminal Block Header, Male Pins Green
Technical Specifications
Parameters and characteristics for this part
| Specification | 1899391 |
|---|---|
| Color | Green |
| Current - UL | 8 A |
| Features | Threaded Mate Lock, Sealing Gasket |
| Front Panel Wire Connection (Method) | Header, Male Pins |
| Number of Levels | 1 |
| Panel Mount Type | Screw Mount - Rear Flange |
| Pitch | 5.08 mm |
| Positions Per Level | 13 |
| Rear Panel Wire Connection | PCB Pins |
| Rear Panel Wire Entry Orientation | Straight |
| Voltage - UL | 800 V |
| Width | 3.772 in |
