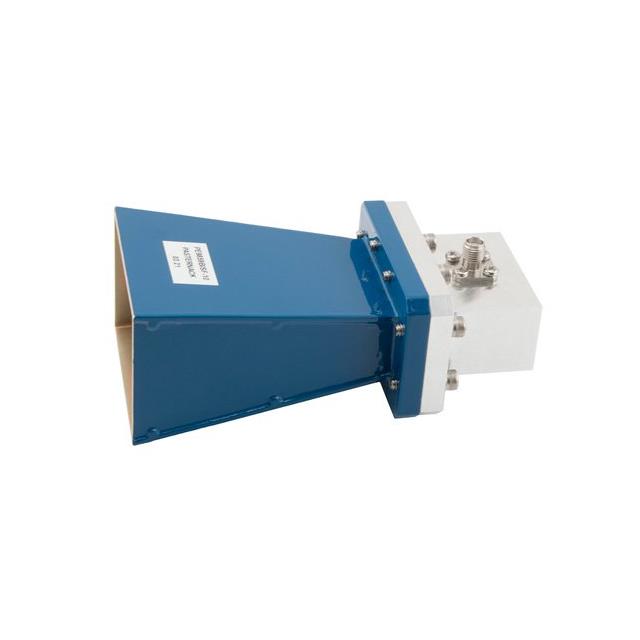

PE9859B/SF-10
ActivePasternack
WR-137 WAVEGUIDE STANDARD GAIN H
PE9859B/SF-10
ActivePasternack
WR-137 WAVEGUIDE STANDARD GAIN H
Description
General part information
PE9859B/SF-10
RF ANTENNA General Purpose Horn SMA Female Waveguide Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PE9859B/SF-10 |
|---|---|
| Antenna Type | Horn |
| Applications | General Purpose |
| Features | Cable - 3.048m, Cable - 7.62m, Cable - 1.524m, Cable - 305mm |
| Frequency (Center/Band) | 7.025 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Max) | 8.2 GHz |
| Frequency Range (Min) | 5.85 GHz |
| Gain | 10 dBi |
| Height (Max) | 1.48 in |
| Mounting Type | Waveguide Mount |
| Number of Bands | 1 |
| RF Family/Standard | General ISM |
| Termination Type | SMA Female |
| VSWR | 1.3 |
