Description
General part information

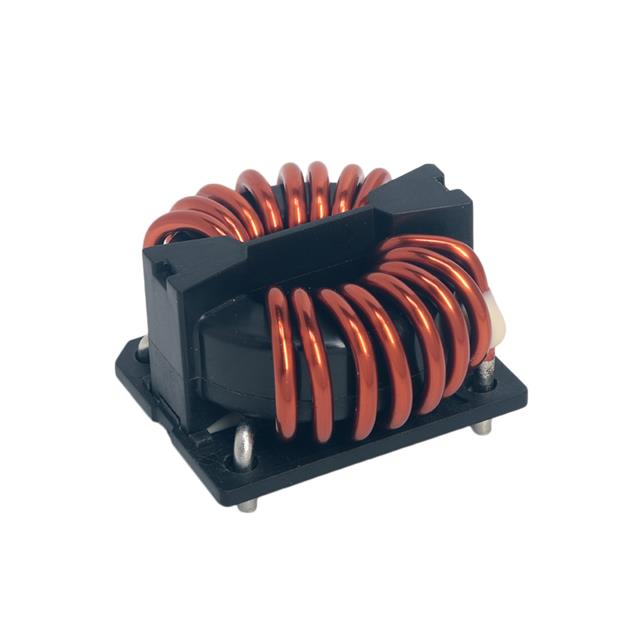

SCF29XV-090-1R4A022JH
5.3 mH @ 100 kHz 2 Line Common Mode Choke Through Hole 9A DCR 10.6mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | SCF29XV-090-1R4A022JH |
|---|---|
| Current Rating (Max) | 9 A |
| DC Resistance (DCR) (Max) | 10.6 mOhm |
| Features | Nanocrystalline Core |
| Filter Type | Power Line |
| Height (Max) | 0.902 in |
| Inductance | 5.3 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4 PC Pin, Horizontal |
| Package Leads | 4 Leads |
| Package Name | Horizontal |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 1.634 in |
| Size / Dimension Width | 1.484 in |
| Voltage Rating - AC | 1 kVAC |
| Voltage Rating - DC | 1 kV |
