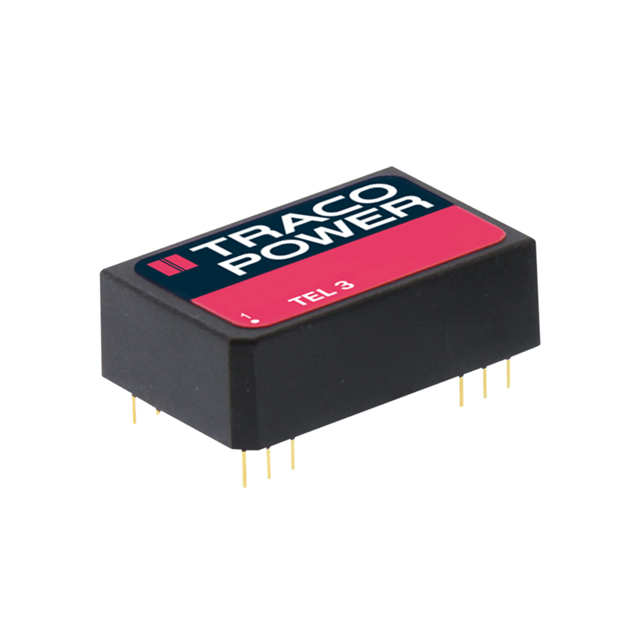

TEL 3-2012
Traco Power
DC DC CONVERTER 12V 3W
Deep-Dive with AI
Search across all available documentation for this part.
TEL 3-2012
Traco Power
DC DC CONVERTER 12V 3W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TEL 3-2012 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 250 mA |
| Efficiency | 80 % |
| Features | SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-DIP Module |
| Package / Case | 12 Leads |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 32 mm |
| Size / Dimension [x] | 1.26 in |
| Size / Dimension [y] | 20 mm |
| Size / Dimension [y] | 0.79 " |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 30 V |
| Voltage - Input (Min) [Min] | 10 VDC |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 25.27 | |
| 10 | $ 23.22 | |||
| 25 | $ 22.46 | |||
| 50 | $ 21.89 | |||
| 100 | $ 21.34 | |||
| 250 | $ 20.64 | |||
| 500 | $ 18.16 | |||
Description
General part information
TEL 3-2012
Isolated Module DC DC Converter 1 Output 12V 250mA 10V - 30V Input
