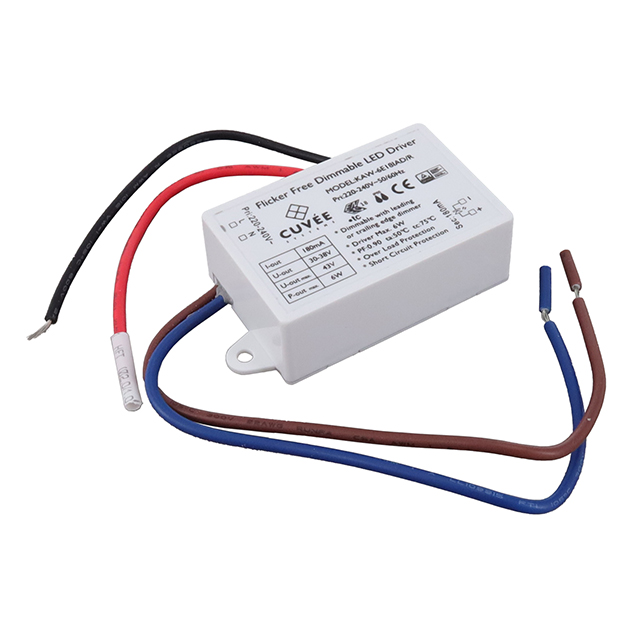

KAW-6E18IAD/R
ObsoleteLuminus Devices Inc.
RECTANGULAR, 230VAC, 6W, 180MA,
KAW-6E18IAD/R
ObsoleteLuminus Devices Inc.
RECTANGULAR, 230VAC, 6W, 180MA,
Description
General part information
KAW-6E18IAD/R
180mA 30 ~ 38V LED Driver AC DC Converter Topology 1 Output
Technical Specifications
Parameters and characteristics for this part
| Specification | KAW-6E18IAD/R |
|---|---|
| Approval Agency | TUV, ENEC, CE |
| Current - Output (Max) | 180 mA |
| Efficiency | 75 % |
| Features | SCP, OVP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -10 °C |
| Power (Watts) | 6 W |
| Ratings | IP65 |
| Size / Dimension Height | 0.67 in |
| Size / Dimension Length | 2.48 in |
| Size / Dimension Width | 1.26 in |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Voltage - Input (Max) | 240 V |
| Voltage - Input (Min) | 220 V |
| Voltage - Output (Max) | 38 V |
| Voltage - Output (Min) | 30 V |
