PE3VNA4008-24
ActivePasternack

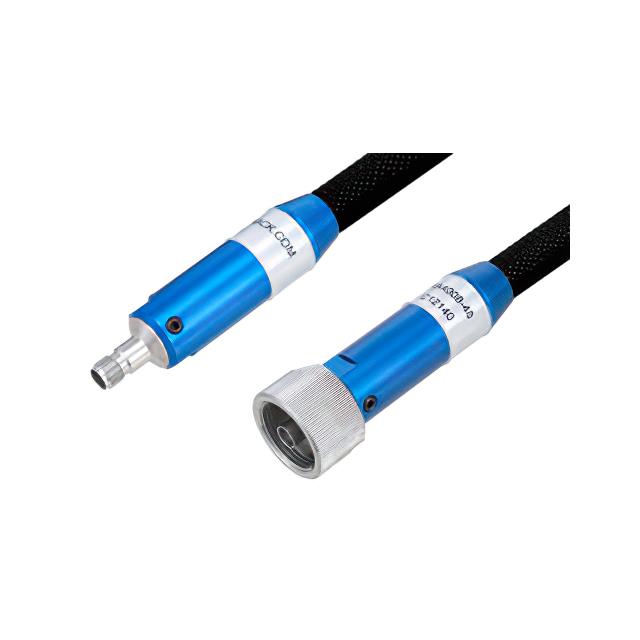

VNA RUGGEDIZED TEST CABLE 2.92MM
PE3VNA4008-24
ActivePasternack
VNA RUGGEDIZED TEST CABLE 2.92MM
Description
General part information
PE3VNA4008-24
Cable Assembly Coaxial 2.92mm to 2.92mm VNA 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3VNA4008-24 |
|---|---|
| 1st Connector | Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size | 2.92 mm |
| 1st Contact Gender | Female |
| 2nd Connector | Jack |
| 2nd Connector Diameter | 2.92 mm |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | VNA |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 40 Gbps |
| Length | 24 in |
| Operating Temperature | 125 °C |
| Overall Impedance | 50 Ohms |
| Style | 2.92mm to 2.92mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
