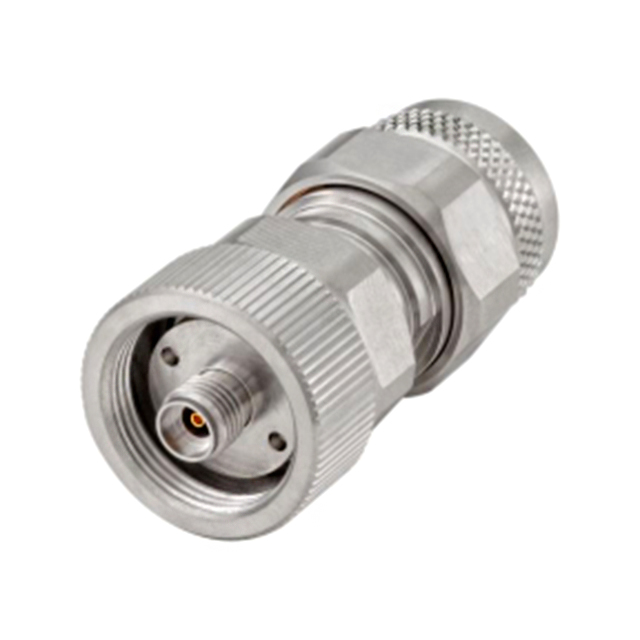

02KR105-S0AS3
ActiveRosenberger
PRECISION 2.92/N TESTPORT ADAPTO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
02KR105-S0AS3
ActiveRosenberger
PRECISION 2.92/N TESTPORT ADAPTO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 02KR105-S0AS3 |
|---|---|
| Adapter Series | RPC-N, RPC-2.92 |
| Adapter Type | Plug to Jack |
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Conversion Type | Between Series |
| Convert From (Adapter End) | 2.92 mm |
| Convert From (Adapter End) | OS-2.9, Jack, Female Socket |
| Convert To (Adapter End) | Male Pin, N Plug |
| Dielectric Material | Polyphenylene Ether (PPE) |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.17 dB |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 691.39 | |
Description
General part information
02KR105 Series
Adapter Coaxial Connector 2.92mm (OS-2.9) Jack, Female Socket To N Plug, Male Pin 50 Ohms
