PSR1635-04

Active

Parlex USA LLC

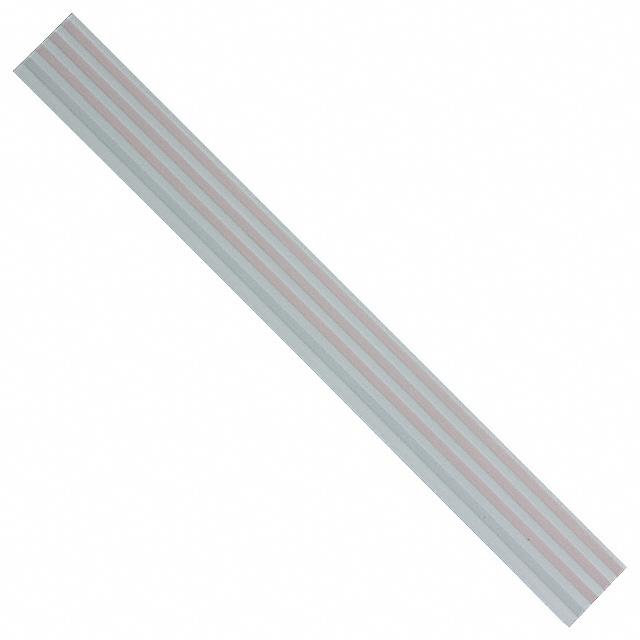

CABLE FFC 4COND 0.100" 500'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PSR1635-04

Active

Parlex USA LLC

CABLE FFC 4COND 0.100" 500'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PSR1635-04	PSR1635 Series

Cable Length	152.4 m, 1.52 m, 30.5 m, 15.24 m	1.52 - 152.4 m
Cable Length	500 ft, 5 ft, 100 ', 50 ft	5 - 500 ft
Cable Width	-	7.57 - 93.98 mm
Cable Width	-	0.3 - 3.7 in
Cable Width	-	10.16 - 22.86 mm
Cable Width	-	0.4 - 0.9 in
Cable Width [x]	12.7 mm	12.7 - 63.5 mm
Cable Width [x]	0.5 in	0.5 - 2.5 in
Conductor Material	Copper, Bare	Copper, Bare
Current Rating (Amps)	3 A	3 A
Features	Conductor 1 Tinned	Conductor 1 Tinned
Jacket (Insulation) Material	Polyester	Polyester
Jacket (Insulation) Thickness	0.05 mm	0.05 mm
Jacket (Insulation) Thickness	0.002 in	0.002 in
Number of Conductors	4	2 - 36
Operating Temperature	105 C	105 C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Ratings	UL Style 2643	UL Style 2643
Voltage Rating	300 VDC	300 VDC
Wire Gauge	27 AWG	27 AWG

PSR1635 Series

CABLE FFC 24COND 0.100"

Part	Operating Temperature	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Features	Voltage Rating	Jacket (Insulation) Material	Cable Length	Cable Length	Number of Conductors	Current Rating (Amps)	Pitch [x]	Pitch [x]	Ratings	Cable Width [x]	Cable Width [x]	Conductor Material	Cable Width	Cable Width	Cable Width [y]	Cable Width [y]
Parlex USA LLC PSR1635-24	105 C	0.05 mm	0.002 in	27 AWG	Conductor 1 Tinned	300 VDC	Polyester	152.4 m	500 ft	24	3 A	2.54 mm	0.1 in	UL Style 2643	2.5 in	63.5 mm	Copper, Bare
Parlex USA LLC PSR1635-27	105 C	0.05 mm	0.002 in	27 AWG	Conductor 1 Tinned	300 VDC	Polyester	152.4 m	500 ft	27	3 A	2.54 mm	0.1 in	UL Style 2643			Copper, Bare	71.12 mm	2.8 in
Parlex USA LLC PSR1635-08	105 C	0.05 mm	0.002 in	27 AWG	Conductor 1 Tinned	300 VDC	Polyester	1.52 m, 7.62 m, 30.5 m, 76.2 m, 152.4 m	5 ft, 100 ', 250 ft, 300 in, 500 ft	8	3 A	2.54 mm	0.1 in	UL Style 2643			Copper, Bare			22.86 mm	0.9 in
Parlex USA LLC PSR1635-06	105 C	0.05 mm	0.002 in	27 AWG	Conductor 1 Tinned	300 VDC	Polyester	1.52 m, 3.05 m, 7.62 m, 15.24 m, 30.5 m, 76.2 m, 152.4 m	5 ft, 10 ft, 50 ft, 100 ', 250 ft, 300 in, 500 ft	6	3 A	2.54 mm	0.1 in	UL Style 2643			Copper, Bare	17.78 mm	0.7 in
Parlex USA LLC PSR1635-14-300	105 C	0.05 mm	0.002 in	27 AWG	Conductor 1 Tinned	300 VDC	Polyester	91.4 m	300 ft	14	3 A	2.54 mm	0.1 in	UL Style 2643			Copper, Bare	38.1 mm	1.5 in
Parlex USA LLC PSR1635-19	105 C	0.05 mm	0.002 in	27 AWG	Conductor 1 Tinned	300 VDC	Polyester	152.4 m	500 ft	19	3 A	2.54 mm	0.1 in	UL Style 2643			Copper, Bare	50.8 mm	2 in
Parlex USA LLC PSR1635-12	105 C	0.05 mm	0.002 in	27 AWG	Conductor 1 Tinned	300 VDC	Polyester	1.52 m, 15.24 m, 30.5 m, 76.2 m, 152.4 m	5 ft, 50 ft, 100 ', 250 ft, 500 ft	12	3 A	2.54 mm	0.1 in	UL Style 2643			Copper, Bare	33.02 mm	1.3 in
Parlex USA LLC PSR1635-05	105 C	0.05 mm	0.002 in	27 AWG	Conductor 1 Tinned	300 VDC	Polyester	1.52 m, 7.62 m, 15.24 m, 76.2 m, 152.4 m	5 ft, 50 ft, 250 ft, 300 in, 500 ft	5	3 A	2.54 mm	0.1 in	UL Style 2643			Copper, Bare	15.1 mm	0.6 in
Parlex USA LLC PSR1635-36	105 C	0.05 mm	0.002 in	27 AWG	Conductor 1 Tinned	300 VDC	Polyester	152.4 m	500 ft	36	3 A	2.54 mm	0.1 in	UL Style 2643			Copper, Bare	93.98 mm	3.7 in
Parlex USA LLC PSR1635-16	105 C	0.05 mm	0.002 in	27 AWG	Conductor 1 Tinned	300 VDC	Polyester	1.52 m, 3.05 m, 7.62 m, 76.2 m, 152.4 m	5 ft, 10 ft, 250 ft, 300 in, 500 ft	16	3 A	2.54 mm	0.1 in	UL Style 2643			Copper, Bare	43.18 mm	1.7 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.40
		1	$ 120.50
		1	$ 66.73
		5	$ 98.87
		5	$ 8.61
		5	$ 54.84
		10	$ 7.94
		10	$ 50.44
		10	$ 90.63
		25	$ 7.14
		25	$ 80.33
		25	$ 45.01
		50	$ 6.55
		50	$ 41.13
		50	$ 73.64
		100	$ 37.76
		100	$ 6.04
		100	$ 68.49
	Spool	1	$ 376.08
		2	$ 346.10
		3	$ 329.70
		5	$ 310.18
		7	$ 297.98
		10	$ 285.59
		25	$ 281.25

Description

General part information

PSR1635 Series

4 Conductor 0.100" (2.54mm) Flat Flex Cable
