8501RSD41V53

Active

SQUARE D BY SCHNEIDER ELECTRIC

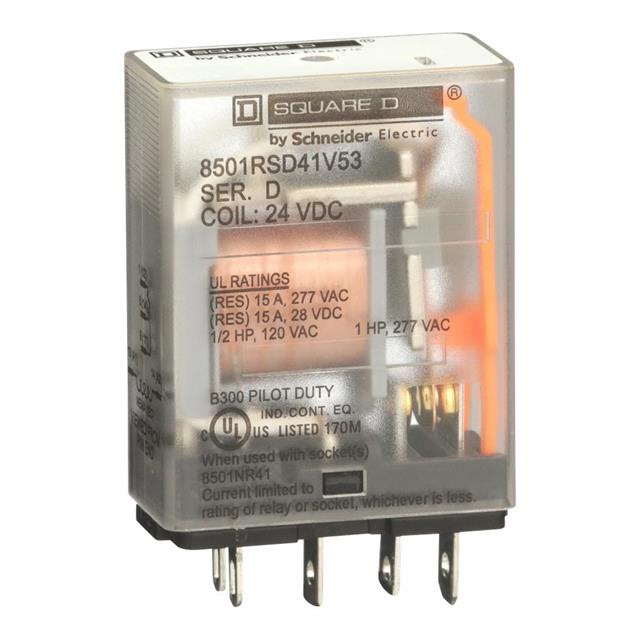

PLUG IN RELAY, TYPE R, MINIATURE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8501RSD41V53

Active

SQUARE D BY SCHNEIDER ELECTRIC

PLUG IN RELAY, TYPE R, MINIATURE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8501RSD41V53

Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver (Ag), Gold (Au)
Contact Rating (Current)	15 A
Load - Max Switching	4500 VA, 450 W
Mounting Type	Socketable
Operate Time	20 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage [Max]	300 VAC, 30 VDC
Termination Style	Plug In

8501RS Series

Part	Mounting Type	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage [Max]	Release Time	Relay Type	Load - Max Switching	Approval Agency	Coil Type	Contact Material	Contact Rating (Current)	Termination Style	Operate Time	Coil Voltage	Switching Voltage
SQUARE D BY SCHNEIDER ELECTRIC 8501RS41P14V14	Socketable	SPDT (1 Form C)	-40 °C	55 °C	30 VDC 300 VAC	20 ms	General Purpose	450 W 4500 VA	CE CSA UL	Non Latching	Gold (Au) Silver (Ag)	15 A	Plug In	20 ms	24 VAC
SQUARE D BY SCHNEIDER ELECTRIC 8501RSD34V51	Socketable	4PDT (4 Form C)	-40 °C	55 °C		20 ms	General Purpose	150 W 1200 VA		Non Latching	Silver Tin Oxide (AgSnO)	5 A	Plug In	20 ms	12 VDC	30 VDC 240 VAC
SQUARE D BY SCHNEIDER ELECTRIC 8501RSD14P14V53	Socketable	4PDT (4 Form C)	-40 °C	55 °C	30 VDC 300 VAC	20 ms	General Purpose	240 W 2400 VA		Non Latching	Gold (Au) Silver (Ag)	8 A	Plug In	20 ms	24 VDC
SQUARE D BY SCHNEIDER ELECTRIC 8501RSD44P14V53	Socketable	4PDT (4 Form C)	-40 °C	55 °C	30 VDC 300 VAC	20 ms	General Purpose	450 W 4500 VA	CE CSA UL	Non Latching	Gold (Au) Silver (Ag)	15 A	Plug In	20 ms	24 VDC
SQUARE D BY SCHNEIDER ELECTRIC 8501RSD43V53	Socketable	3PDT (3 Form C)	-40 °C	55 °C	30 VDC 300 VAC	20 ms	General Purpose	450 W 4500 VA		Non Latching	Gold (Au) Silver (Ag)	15 A	Plug In	20 ms	24 VDC
SQUARE D BY SCHNEIDER ELECTRIC 8501RSD14V51	Socketable	4PDT (4 Form C)	-40 °C	55 °C	30 VDC 300 VAC	20 ms	General Purpose	240 W 2400 VA		Non Latching	Gold (Au) Silver (Ag)	8 A	Plug In	20 ms	12 VDC
SQUARE D BY SCHNEIDER ELECTRIC 8501RSD41P14V53	Socketable	SPDT (1 Form C)	-40 °C	55 °C	30 VDC 300 VAC	20 ms	General Purpose	450 W 4500 VA	CE CSA UL	Non Latching	Gold (Au) Silver (Ag)	15 A	Plug In	20 ms	24 VDC
SQUARE D BY SCHNEIDER ELECTRIC 8501RS34V14	Socketable	4PDT (4 Form C)	-40 °C	55 °C		20 ms	General Purpose	150 W 1200 VA	CE CSA UL	Non Latching	Gold (Au) Silver (Ag)	5 A	Plug In	20 ms	24 VAC	30 VDC 240 VAC
SQUARE D BY SCHNEIDER ELECTRIC 8501RS44V14	Socketable	4PDT (4 Form C)	-40 °C	55 °C	30 VDC 300 VAC	20 ms	General Purpose	450 W 4500 VA		Non Latching	Gold (Au) Silver (Ag)	15 A	Plug In	20 ms	24 VAC
SQUARE D BY SCHNEIDER ELECTRIC 8501RS44P14V20	Socketable	4PDT (4 Form C)	-40 °C	55 °C	30 VDC 300 VAC	20 ms	General Purpose	450 W 4500 VA		Non Latching	Gold (Au) Silver (Ag)	15 A	Plug In	20 ms	120 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 52.79

Description

General part information

8501RS Series

General Purpose Relay SPDT (1 Form C) 24VDC Coil Socketable
