XGHBPB3345

Active

TELEMECANIQUE SENSORS

ELECTRONIC TAG, RADIO FREQUENCY

Search across all available documentation for this part.

Active

TELEMECANIQUE SENSORS

ELECTRONIC TAG, RADIO FREQUENCY

Technical Specifications

Parameters and characteristics commom to parts in this series

ELECTRONIC TAG, RFID, 13.56 MHZ, 2 KB, OSISENSE XG SERIES

Part	Standards	Technology	Size / Dimension [diameter]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Memory Type	Style	Frequency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
TELEMECANIQUE SENSORS XGHB320246	ISO 15693	Passive	30 mm	3 mm	70 °C	-25 °C	Read/Write	Encapsulated	13.56 MHz
TELEMECANIQUE SENSORS XGHB440845		Passive			70 °C	-25 °C	Read/Write	Encapsulated	13.56 MHz	1.575 in	1.575 in	40 mm	40 mm
TELEMECANIQUE SENSORS XGHB440245	ISO 15693	Passive			70 °C	-25 °C	Read/Write	Encapsulated	13.56 MHz	1.575 in	1.575 in	40 mm	40 mm
TELEMECANIQUE SENSORS XGHB320345	ISO 15693	Passive	30 mm	3 mm	85 °C	-25 °C	Read/Write	Encapsulated	13.56 MHz
TELEMECANIQUE SENSORS XGHB211345	ISO 15693	Passive			70 °C	-25 °C	Read/Write	Encapsulated	13.56 MHz
TELEMECANIQUE SENSORS XGHB90E340	ISO 15693	Passive			50 °C	-25 °C	Read/Write	Card	13.56 MHz	2.126 in	3.366 "	85.5 mm	54 mm
TELEMECANIQUE SENSORS XGHB444345		Passive			70 °C	-25 °C	Read/Write	Encapsulated	13.56 MHz	1.575 in	1.575 in	40 mm	40 mm
TELEMECANIQUE SENSORS XGHB221346	ISO 15693	Passive			70 °C	-25 °C	Read/Write	Encapsulated	13.56 MHz	1.024 ", 26 mm	1.024 in, 26 mm
TELEMECANIQUE SENSORS XGHB441645		Passive			70 °C	-25 °C	Read/Write	Encapsulated	13.56 MHz	1.575 in	1.575 in	40 mm	40 mm
TELEMECANIQUE SENSORS XGHB520246	ISO 15693	Passive	50 mm		85 °C	-25 °C	Read/Write	Encapsulated	13.56 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 76.21

General part information

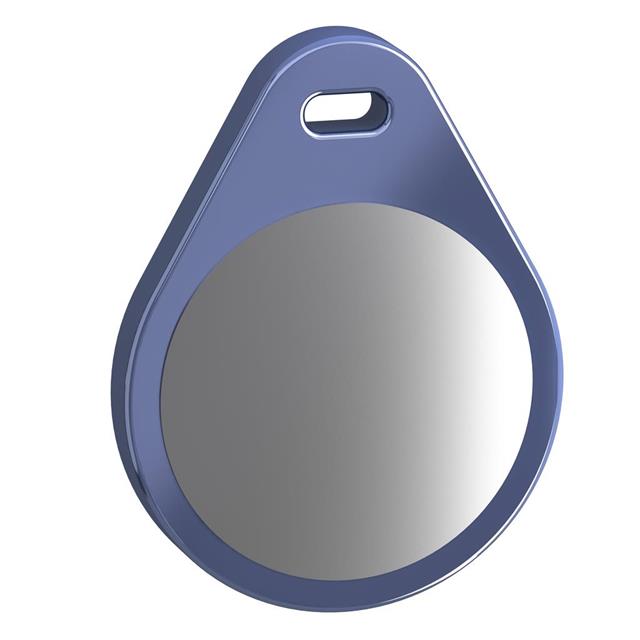

RFID Tag Read/Write Memory 13.56MHz ISO 15693 Key Fob
