DS1393U-18+
ActiveAnalog Devices Inc./Maxim Integrated

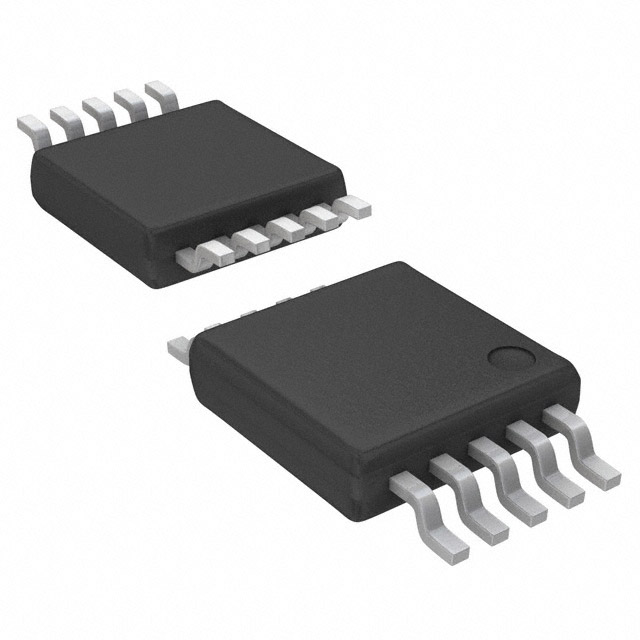

IC RTC CLK/CALENDAR SER 10-USOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DS1393U-18+
ActiveAnalog Devices Inc./Maxim Integrated
IC RTC CLK/CALENDAR SER 10-USOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DS1393U-18+ | DS1393 Series |
|---|---|---|
| Current - Timekeeping (Max) | - | 100 - 175 µA |
| Features | - | Trickle-Charger, Leap Year, Alarm, Square Wave Output |
| Interface | - | 3-Wire Serial |
| Mounting Type | - | Surface Mount |
| null | - | |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 10-MSOP, 10-TFSOP |
| Package / Case | - | 3 mm |
| Package / Case | - | 0.118 in |
| Supplier Device Package | - | 10-uMAX/uSOP, 10-uMAX |
| Time Format | - | HH:MM:SS:hh (12/24 hr) |
| Type | - | Clock/Calendar |
| Voltage - Supply | - | 1.89 - 5.5 V |
| Voltage - Supply | - | 1.71 - 2.97 V |
| Voltage - Supply, Battery | - | 1.3 V |
| Voltage - Supply, Battery | - | 3.7 - 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 132 | $ 2.29 | |
DS1393 Series
IC RTC CLK/CALENDAR SER 10UMAX
| Part | Voltage - Supply, Battery [Min] | Voltage - Supply, Battery [Max] | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Type | Features | Voltage - Supply [Max] | Voltage - Supply [Min] | Interface | Time Format | Mounting Type | Current - Timekeeping (Max) | Package / Case | Package / Case [x] | Package / Case [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated DS1393U-33+ | 1.3 V | 5.5 V | 10-uMAX/uSOP | 85 °C | -40 °C | Clock/Calendar | Alarm, Leap Year, Square Wave Output, Trickle-Charger | 5.5 V | 2.97 V | 3-Wire Serial | HH:MM:SS:hh (12/24 hr) | Surface Mount | 175 µA | 10-MSOP, 10-TFSOP | 3 mm | 0.118 in |
Analog Devices Inc./Maxim Integrated DS1393U-18+ | ||||||||||||||||
Analog Devices Inc./Maxim Integrated DS1393U-3+ | 1.3 V | 3.7 V | 10-uMAX/uSOP | 85 °C | -40 °C | Clock/Calendar | Alarm, Leap Year, Square Wave Output, Trickle-Charger | 3.3 V | 2.7 V | 3-Wire Serial | HH:MM:SS:hh (12/24 hr) | Surface Mount | 10-MSOP, 10-TFSOP | 3 mm | 0.118 in | |
Analog Devices Inc./Maxim Integrated DS1393U-33 | 1.3 V | 5.5 V | 10-uMAX | 85 °C | -40 °C | Clock/Calendar | Alarm, Leap Year, Square Wave Output, Trickle-Charger | 5.5 V | 2.97 V | 3-Wire Serial | HH:MM:SS:hh (12/24 hr) | Surface Mount | 175 µA | 10-MSOP, 10-TFSOP | 3 mm | 0.118 in |
Analog Devices Inc./Maxim Integrated DS1393U-3 | 1.3 V | 3.7 V | 10-uMAX | 85 °C | -40 °C | Clock/Calendar | Alarm, Leap Year, Square Wave Output, Trickle-Charger | 3.3 V | 2.7 V | 3-Wire Serial | HH:MM:SS:hh (12/24 hr) | Surface Mount | 10-MSOP, 10-TFSOP | 3 mm | 0.118 in | |
Analog Devices Inc./Maxim Integrated DS1393U-18+T&R | 1.3 V | 3.7 V | 10-uMAX/uSOP | 85 °C | -40 °C | Clock/Calendar | Alarm, Leap Year, Square Wave Output, Trickle-Charger | 1.89 V | 1.71 V | 3-Wire Serial | HH:MM:SS:hh (12/24 hr) | Surface Mount | 100 µA | 10-MSOP, 10-TFSOP | 3 mm | 0.118 in |
