Technical Specifications
Parameters and characteristics for this part
| Specification | ATS-54350K-C1-R0 |
|---|---|
| Attachment Method | Thermal Tape, Adhesive (Included) |
| Fin Height [z] | 0.571 in |
| Fin Height [z] | 14.5 mm |
| Length [x] | 1.378 in |
| Length [x] | 35 mm |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Package Cooled | BGA |
| Shape | Square, Fins |
| Thermal Resistance @ Forced Air Flow | 200 LFM, 5.4 °C/W |
| Type | Top Mount |
| Width | 35 mm |
| Width [x] | 1.378 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

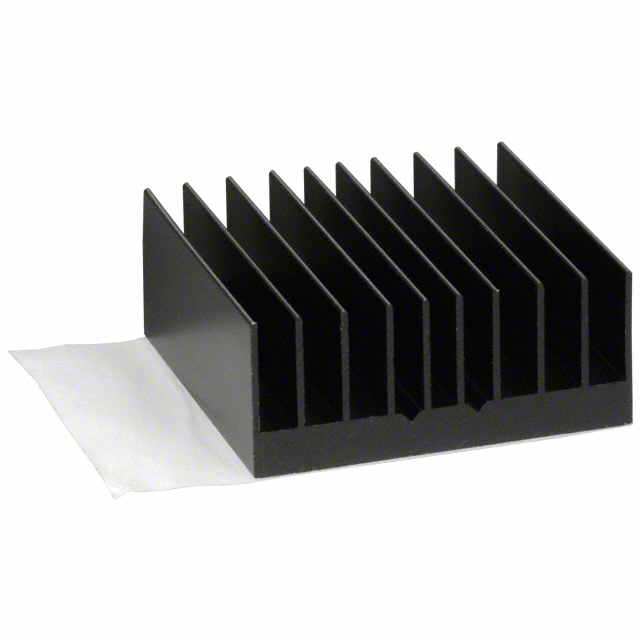

ATS-54350K-C1-R0
Heat Sink BGA Aluminum Top Mount
Documents
Technical documentation and resources
