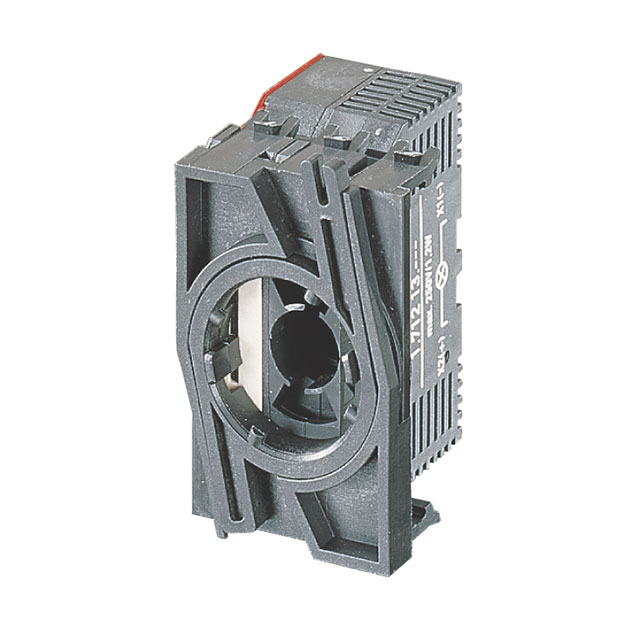

1.20.124.030/0000

Active

RAFI USA

CONTACT BLOCK DPST-NO 10A 125V

Search across all available documentation for this part.

Active

RAFI USA

CONTACT BLOCK DPST-NO 10A 125V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 27.49

General part information

Configurable Contact Block DPST-NO 10A @ 125VAC

Technical documentation and resources

Specification	1.20.124.030/0000	1.20124 Series

	-	-
(Select First, Then Apply Filters) Compatible Series	Rafix 22QR	Rafix 22QR
Circuit	DPST-NO	SPST-NO + SPST-NC, DPST-NO, SPST-NO, SPST-NC x 2, SPST-NO x 2, DPST-NC, SPST-NC
Contact Rating @ Voltage	125 VAC, 10 A	0.1 - 125 VAC
Requires	Switch Body	Switch Body
Termination Style	Screw Terminal	Screw Terminal

Part	Circuit	(Select First, Then Apply Filters) Compatible Series	Contact Rating @ Voltage	Termination Style	Requires
RAFI USA 1.20.124.025/0000	SPST-NO + SPST-NC	Rafix 22QR	10 A, 125 VAC	Screw Terminal	Switch Body
RAFI USA 1.20.124.130/0000	DPST-NO	Rafix 22QR	0.1 A, 35 VAC/DC	Screw Terminal	Switch Body
RAFI USA 1.20.124.122/0000
RAFI USA 1.20.124.002/0000	SPST-NO	Rafix 22QR	10 A, 125 VAC	Screw Terminal	Switch Body
RAFI USA 1.20.124.023/0000	SPST-NC x 2	Rafix 22QR	10 A, 125 VAC	Screw Terminal	Switch Body
RAFI USA 1.20.124.124/0000	SPST-NO x 2	Rafix 22QR	0.1 A, 35 VAC/DC	Screw Terminal	Switch Body
RAFI USA 1.20.124.127/0000	SPST-NO + SPST-NC	Rafix 22QR	0.1 A, 35 VAC/DC	Screw Terminal	Switch Body
RAFI USA 1.20.124.119/0000	DPST-NC	Rafix 22QR	0.1 A, 35 VAC/DC	Screw Terminal	Switch Body
RAFI USA 1.20.124.001/0000	SPST-NC	Rafix 22QR	10 A, 125 VAC	Screw Terminal	Switch Body
RAFI USA 1.20.124.128/0000
