83350E 0091000

Active

Belden Inc.

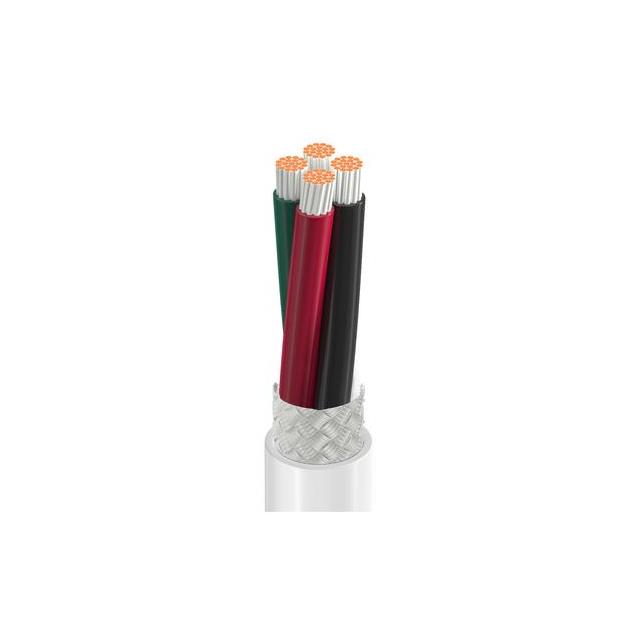

CABLE 4COND 20AWG WHT SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 20AWG WHT SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	83350E 0091000

Cable Type	Multi-Conductor
Conductor Insulation	Tetrafluoroethylene (TFE)
Conductor Material	Copper, Silver Coated
Conductor Strand [custom]	19
Conductor Strand [custom]	32 AWG
Jacket (Insulation) Diameter [diameter]	4.65 mm
Jacket (Insulation) Diameter [diameter]	0.183 in
Jacket (Insulation) Material	Tetrafluoroethylene (TFE)
Jacket (Insulation) Thickness	0.279 mm
Jacket (Insulation) Thickness	0.011 in
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Qualification	MIL-W-16878/4 Type E
Shield Coverage	85 %
Shield Material	Copper, Silver Coated
Shield Type	Braid
Voltage	600 V
Wire Gauge	20 AWG

Part	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Voltage	Shield Type	Shield Material	Length	Length	Wire Gauge	Conductor Material	Jacket (Insulation) Material	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Qualification	Shield Coverage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Belden Inc. 83350E 0091000	Multi-Conductor	19	32 AWG	Tetrafluoroethylene (TFE)	600 V	Braid	Copper Silver Coated	1000 ft	304.8 m	20 AWG	Copper Silver Coated	Tetrafluoroethylene (TFE)	4	-65 ░C	200 °C	MIL-W-16878/4 Type E	85 %	0.279 mm	0.011 in	4.65 mm	0.183 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 15.96

General part information

4 Conductor Multi-Conductor Cable White 20 AWG Braid 1000.0' (304.8m)
