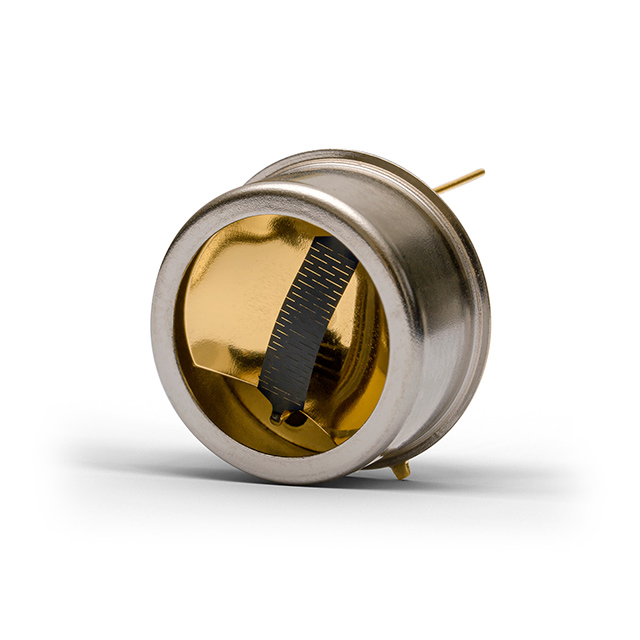

HIS2000R-0
ActiveInnovative Sensor Technology, USA Division
THERMAL IR EMITTER WITH BROADBAN
HIS2000R-0
ActiveInnovative Sensor Technology, USA Division
THERMAL IR EMITTER WITH BROADBAN
Description
General part information
HIS2000R-0
Infrared (IR) Emitter 11µm (2µm ~ 20µm) 3.8V (Max) 660mA TO-8 Style, 2 Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | HIS2000R-0 |
|---|---|
| Current - DC Forward (If) (Max) | 660 mA |
| Mounting Type | Through Hole |
| Orientation | Side View |
| Package Leads | 2 Leads |
| Package Name | TO-8 Style |
| Type | Infrared (IR) |
| Voltage - Forward (Vf) (Max) | 3.8 V |
| Wavelength | 11 µm |
| Wavelength (Maximum) | 20 µm |
| Wavelength (Minimum) | 2 µm |
| Wavelength (Nominal) | 11 µm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
