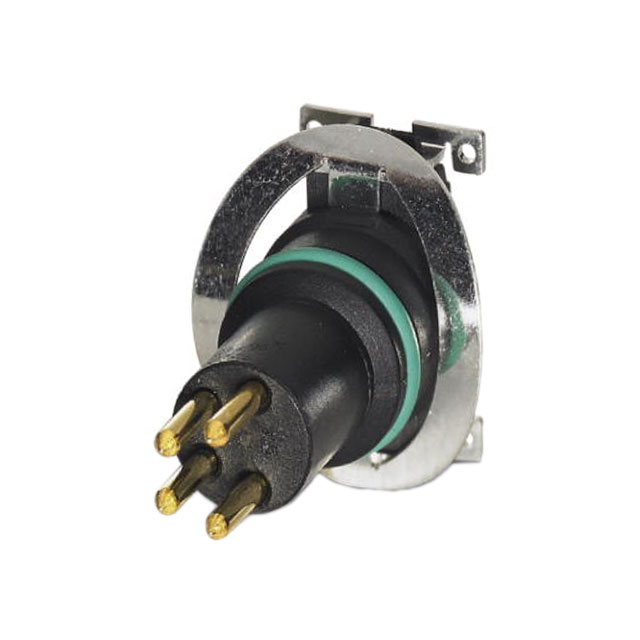

Specification	1412264

Connector Type	Insert, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating	3 A
Features	Requires Shell, Board Guide, Insert Only
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	PA, Nylon, Polyamide
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	4
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	A
Shell Size - Insert	M8-4
Shielding	Shielded
Termination	Solder
Voltage Rating (AC)	50 VAC
Voltage Rating (DC)	60 VDC
