ActiveTE Connectivity AMP Connectors
TERMINAL,PIDG R IR 24 8 ROHS COMPLIANT: YES
53056
ActiveTE Connectivity AMP Connectors
TERMINAL,PIDG R IR 24 8 ROHS COMPLIANT: YES
Description
General part information
53056

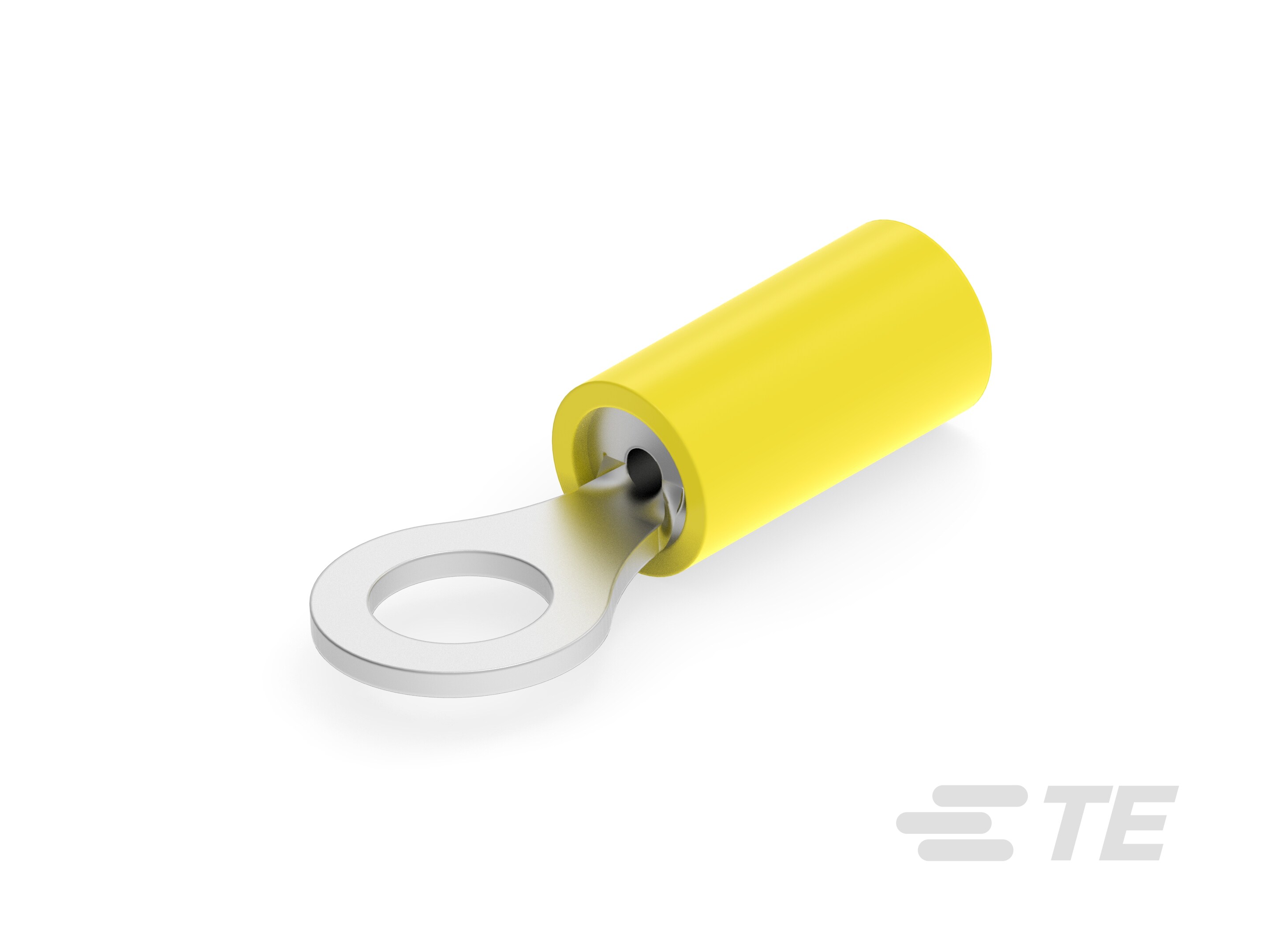

Closed Ring Tongue Terminal, 24 AWG, #8 / M4 Stud, 4.17 mm [.164 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Partially Insulated, PIDG
Technical Specifications
Parameters and characteristics for this part
| Specification | 53056 |
|---|---|
| Color | Yellow, Blue Stripe |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination, Insulation Restriction |
| Insulation | Insulated |
| Length - Overall | 0.814 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 8 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.027 in |
| Width - Outer Edges | 0.281 in |
| Wire Gauge | 24 AWG |
