8241 006U1000

Active

Belden Inc.

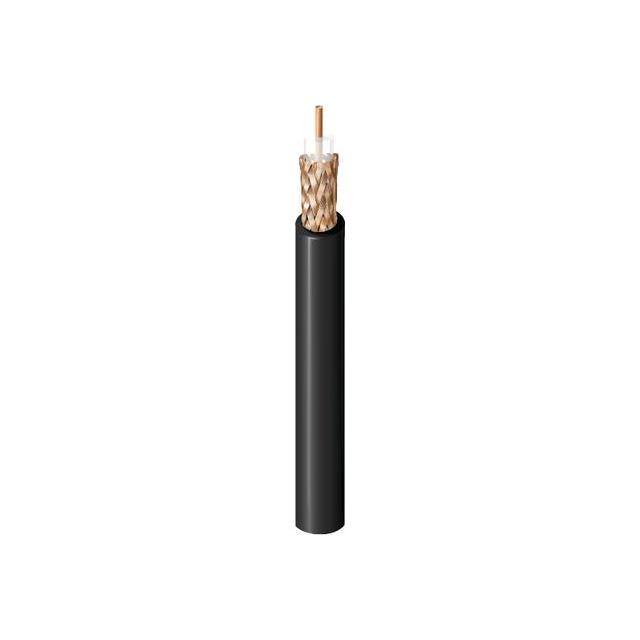

RG59/U TYPE COAX LBLU

Search across all available documentation for this part.

Active

Belden Inc.

RG59/U TYPE COAX LBLU

Technical Specifications

Parameters and characteristics for this part

Specification	8241 006U1000

Cable Group	RG-59
Cable Type	Coaxial
Conductor Material	Steel, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.146 "
Dielectric Diameter [diameter]	3.71 mm
Jacket (Insulation) Diameter [diameter]	0.24 in
Jacket (Insulation) Diameter [diameter]	6.1 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Blue
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-30 ░C
Shield Coverage	95 %
Shield Material	Copper, Bare
Shield Type	Braid
Usage	Video
Wire Gauge	23 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Shield Type	Jacket Color	Usage	Cable Group	Conductor Material	Shield Material	Jacket (Insulation) Material	Conductor Strand	Wire Gauge	Shield Coverage	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Length	Length
Belden Inc. 8241 0105000	0.24 in	6.1 mm	-30 ░C	75 ░C	Coaxial	Braid	Black	Video	RG-59	Copper Coated Steel	Copper Bare	Poly-Vinyl Chloride (PVC)	Solid	23 AWG	95 %	0.146 "	3.71 mm
Belden Inc. 8241 006U1000	0.24 in	6.1 mm	-30 ░C	75 ░C	Coaxial	Braid	Blue	Video	RG-59	Copper Coated Steel	Copper Bare	Poly-Vinyl Chloride (PVC)	Solid	23 AWG	95 %	0.146 "	3.71 mm	304.8 m	1000 ft
Belden Inc. 8241 010U1000	0.24 in	6.1 mm	-30 ░C	75 ░C	Coaxial	Braid	Black	Video	RG-59	Copper Coated Steel	Copper Bare	Poly-Vinyl Chloride (PVC)	Solid	23 AWG	95 %	0.146 "	3.71 mm	304.8 m	1000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.76

General part information

Coaxial Cable 23 AWG RG-59 1000.0' (304.80m)
