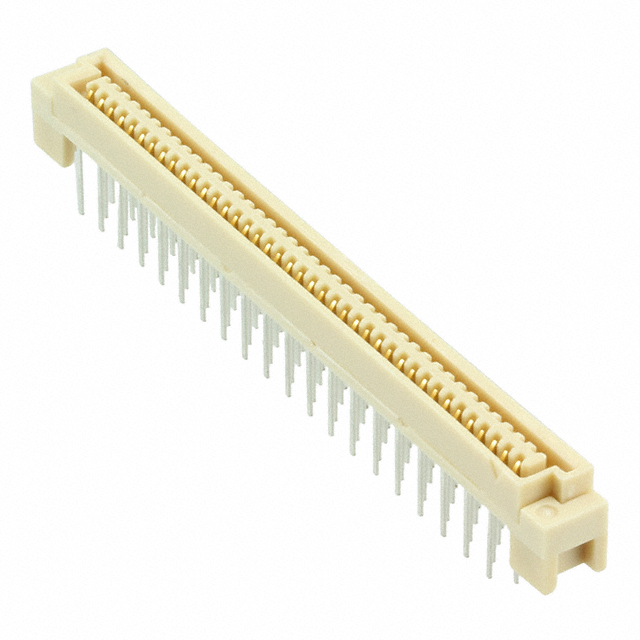

Specification	FX4C3-80S-1.27DSA(71)

Connector Type	Center Strip Contacts, Receptacle
Contact Finish	Gold
Contact Finish Thickness	8 µin
Height Above Board	0.275 in
Mated Stacking Height Options	11mm, 8mm, 9mm
Mounting Type	Through Hole
Number of Positions	80
Number of Rows	2
Pitch	0.05 in

FX4C Series

...

Part	Pitch	Mounting Type	Number of Rows	Contact Finish	Mated Stacking Height Options	Height Above Board	Contact Finish Thickness	Connector Type	Number of Positions	Features
Hirose Electric Co Ltd FX4C2-68S-1.27DSA(71)	0.05 in	Through Hole	2	Gold	10mm 7mm 8mm	0.236 in	8 µin	Center Strip Contacts Receptacle	68
Hirose Electric Co Ltd FX4C3-52P-1.27DSAL(71)	0.05 in	Through Hole	2	Gold	10mm 11mm 8mm	0.275 in	8 µin	Header Outer Shroud Contacts	52	Board Lock
Hirose Electric Co Ltd FX4C2-40S-1.27DSAL(98)	0.05 in	Through Hole	2	Gold	10mm 7mm 8mm	0.236 in	8 µin	Center Strip Contacts Receptacle	40	Board Lock
Hirose Electric Co Ltd FX4C-20S-1.27DSAL(71)	0.05 in	Through Hole	2	Gold	5mm 6mm 8mm	0.197 in		Center Strip Contacts Receptacle	20	Board Lock
Hirose Electric Co Ltd FX4C1-68P-1.27DSAL(71)	0.05 in	Through Hole	2	Gold	6mm 8mm 9mm	0.197 in	8 µin	Header Outer Shroud Contacts	68	Board Lock
Hirose Electric Co Ltd FX4C-52P-1.27DSA(71)	0.05 in	Through Hole	2	Gold	5mm 7mm 8mm	0.157 in	8 µin	Header Outer Shroud Contacts	52
Hirose Electric Co Ltd FX4C-60P-1.27DSA(71)	0.05 in	Through Hole	2	Gold	5mm 7mm 8mm	0.157 in	8 µin	Header Outer Shroud Contacts	60
Hirose Electric Co Ltd FX4C3-32S-1.27DSAL(71)	0.05 in	Through Hole	2	Gold	11mm 8mm 9mm	0.275 in	8 µin	Center Strip Contacts Receptacle	32	Board Lock
Hirose Electric Co Ltd FX4C3-20P-1.27DSA(71)	0.05 in	Through Hole	2	Gold	10mm 11mm 8mm	0.275 in	8 µin	Header Outer Shroud Contacts	20
Hirose Electric Co Ltd FX4C1-40P-1.27DSAL(71)	0.05 in	Through Hole	2	Gold	6mm 8mm 9mm	0.197 in	8 µin	Header Outer Shroud Contacts	40	Board Lock
