LV W5SG-GXHX-35
Obsoleteams-OSRAM USA INC.

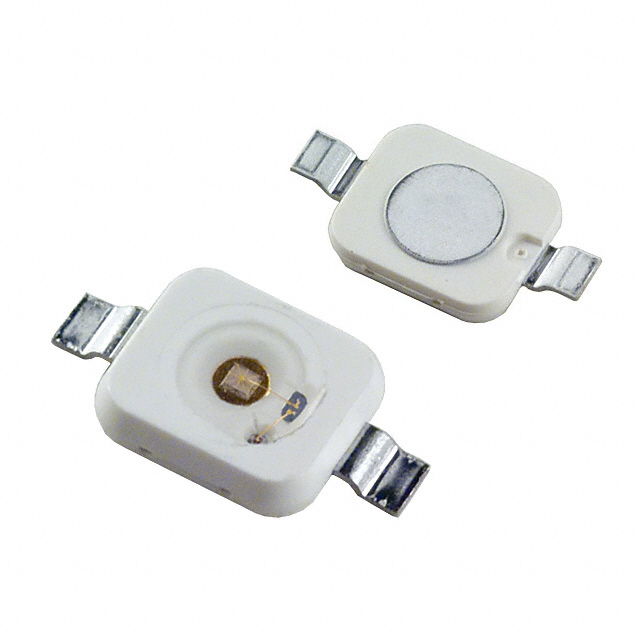

LED GOLDEN DRAGON GRN 505NM SMD
LV W5SG-GXHX-35
Obsoleteams-OSRAM USA INC.
LED GOLDEN DRAGON GRN 505NM SMD
Description
General part information
LV W5SG-GXHX-35
LED Lighting Color Golden DRAGON® Green 505nm (499nm ~ 511nm) 2-SMD, Gull Wing
Technical Specifications
Parameters and characteristics for this part
| Specification | LV W5SG-GXHX-35 |
|---|---|
| Color | Green |
| Current - Max | 500 mA |
| Current - Test | 350 mA |
| Height - Seated (Max) | 0.079 in |
| Lumens/Watt | 20 lm/W |
| Luminous Flux | 26 lm |
| Luminous Flux (Maximum) | 33 lm |
| Luminous Flux (Minimum) | 18 lm |
| Mounting Type | Surface Mount |
| Package / Case | Gull Wing, 2-SMD |
| Package Name | SMD |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.236 in |
| Temperature - Test | 25 °C |
| Thermal Resistance of Package | 9 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.8 V |
| Wavelength | 505 nm |
| Wavelength (Maximum) | 511 nm |
| Wavelength (Minimum) | 499 nm |
| Wavelength (Nominal) | 505 nm |
