SCNBN-J1175-SORPM

Active

Suntsu Electronics, Inc

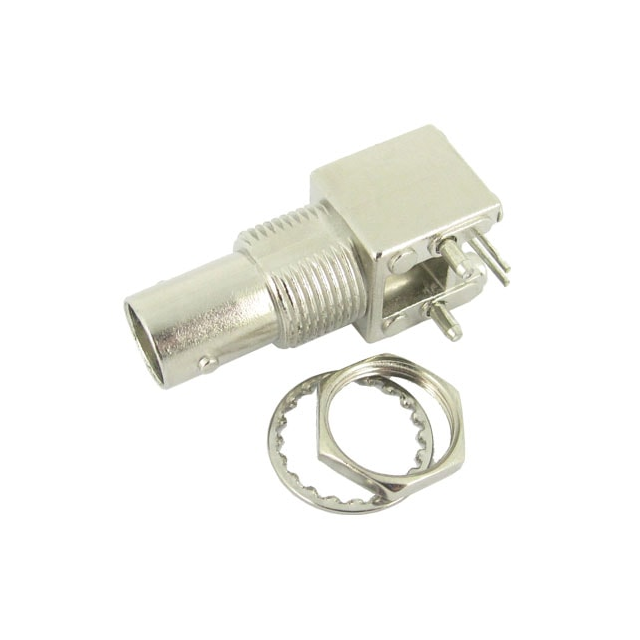

CONN BNC JACK R/A 50 OHM PCB

Search across all available documentation for this part.

Active

Suntsu Electronics, Inc

CONN BNC JACK R/A 50 OHM PCB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	SCNBN-J1175-SORPM	SCNBN-J1175 Series

Body Finish	Nickel	Nickel
Body Material	Zinc	Zinc
Center Contact Material	Phosphor Bronze	Brass, Phosphor Bronze
Center Contact Plating	Gold	Nickel, Gold
Connector Style	BNC	BNC
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Solder	Solder
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Board Guide	Board Guide
Frequency - Max [Max]	1 GHz	1 - 4 GHz
Housing Color	Silver	Silver
Impedance	75 Ohms	75 Ohms
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Panel Mount, End Launch, Board Edge, Right Angle
Number of Ports	1	1
Shield Termination	Solder	Solder
Voltage Rating	500 V	500 V

CONN BNC JACK R/A 75 OHM PCB

Part	Impedance	Fastening Type	Contact Termination	Body Finish	Number of Ports	Connector Type	Shield Termination	Center Contact Plating	Center Contact Material	Features	Mounting Type	Frequency - Max [Max]	Housing Color	Body Material	Connector Style	Mounting Feature	Voltage Rating
Suntsu Electronics, Inc SCNBN-J1175-SOSPM	75 Ohms	Bayonet Lock	Solder	Nickel	1	Female Socket, Jack	Solder	Nickel	Brass	Board Guide	Through Hole	4 GHz	Silver	Zinc	BNC
Suntsu Electronics, Inc SCNBN-J1175-SOPER	75 Ohms	Bayonet Lock	Solder	Nickel	1	Female Socket, Jack	Solder	Nickel	Brass		Board Edge, End Launch, Panel Mount	4 GHz	Silver	Zinc	BNC	Bulkhead - Front Side Nut
Suntsu Electronics, Inc SCNBN-J1175-SORPE	75 Ohms	Bayonet Lock	Solder	Nickel	1	Female Socket, Jack	Solder	Nickel	Brass		Panel Mount, Right Angle, Through Hole	4 GHz	Silver	Zinc	BNC	Bulkhead - Front Side Nut
Suntsu Electronics, Inc SCNBN-J1175-SOREM	75 Ohms	Bayonet Lock	Solder	Nickel	1	Female Socket, Jack	Solder	Nickel	Brass		Through Hole	4 GHz	Silver	Zinc	BNC
Suntsu Electronics, Inc SCNBN-J1175-SORPM	75 Ohms	Bayonet Lock	Solder	Nickel	1	Female Socket, Jack	Solder	Gold	Phosphor Bronze	Board Guide	Panel Mount, Right Angle, Through Hole	1 GHz	Silver	Zinc	BNC	Bulkhead - Front Side Nut	500 V
