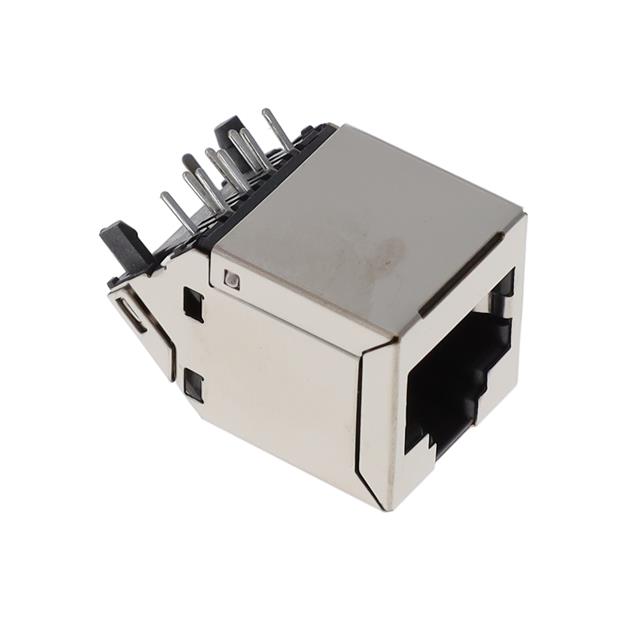

AMJ-188-30101-CAT6
ActiveAssmann WSW Components
MODULAR-JACK 8P8C, CAT6
AMJ-188-30101-CAT6
ActiveAssmann WSW Components
MODULAR-JACK 8P8C, CAT6
Description
General part information
AMJ-188-30101-CAT6
Jack Modular Connector 8p8c (RJ45, Ethernet) 47.5° Angle Unshielded Cat6
Technical Specifications
Parameters and characteristics for this part
| Specification | AMJ-188-30101-CAT6 |
|---|---|
| Connector Type | Ethernet, RJ45, Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation Angle | 47.5 ° |
| Ratings | Cat6 |
| Shielding | Unshielded |
| Tab Direction | Up |
| Termination | Solder |
