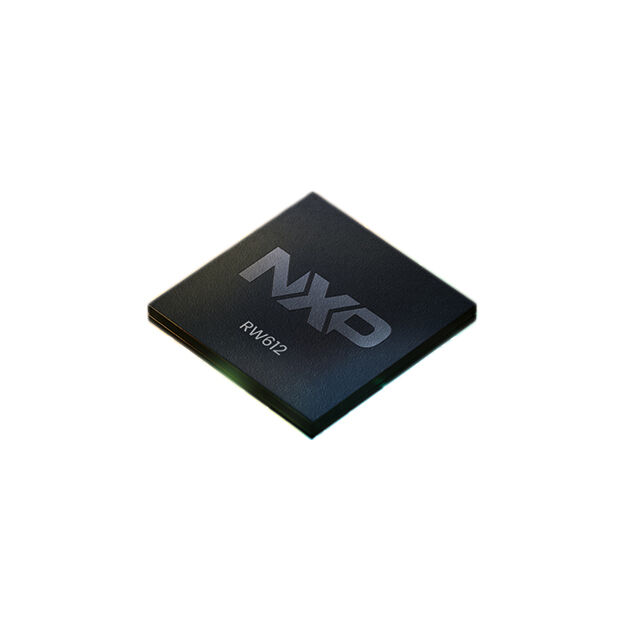

RW612UK/A2IZ
ActiveNXP USA Inc.
RW612UK/A2I/ REEL ROHS COMPLIANT: YES
RW612UK/A2IZ
ActiveNXP USA Inc.
RW612UK/A2I/ REEL ROHS COMPLIANT: YES
Description
General part information
RW612UK/A2IZ
IC RF
Technical Specifications
Parameters and characteristics for this part
| Specification | RW612UK/A2IZ |
|---|---|
| Data Rate (Max) | 480 Mbps |
| Frequency | 2.4 GHz, 5 GHz |
| Frequency | 2.4GHz, 5GHz |
| Modulation | OFDM |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Power - Output | 23 dBm |
| Protocol | 802.11ax, Bluetooth v5.4 |
| RF Family/Standard | WiFi, Bluetooth |
| Serial Interfaces | UART, GPIO, I2S, SDIO, JTAG, PCM |
| Type | TxRx + MCU |
| Voltage - Supply (Range 1 Maximum) | 1.89 V |
| Voltage - Supply (Range 1 Minimum) | 1.71 V |
| Voltage - Supply (Range 2 Maximum) | 3.46 V |
| Voltage - Supply (Range 2 Minimum) | 3.14 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
