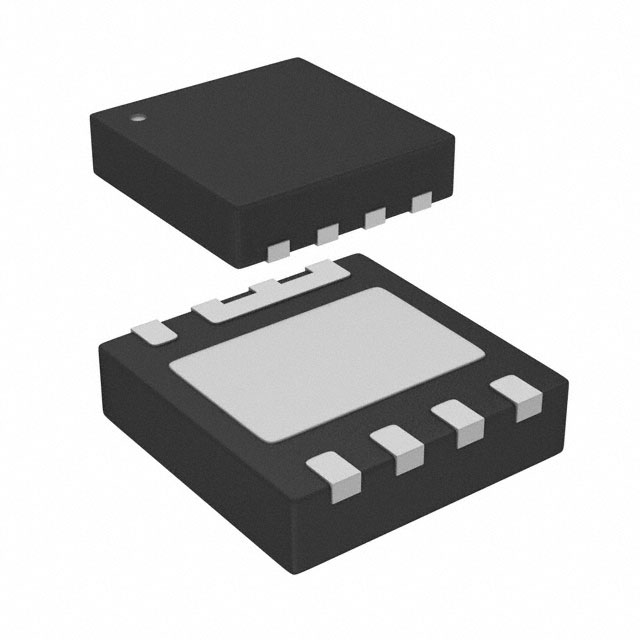

DML1006LDS-7
ObsoleteDiodes Inc
NRND = NOT RECOMMENDED FOR NEW DESIGN
Deep-Dive with AI
Search across all available documentation for this part.
DML1006LDS-7
ObsoleteDiodes Inc
NRND = NOT RECOMMENDED FOR NEW DESIGN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DML1006LDS-7 |
|---|---|
| Current - Output (Max) [Max] | 10 A |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Package / Case | 8-VDFN Exposed Pad |
| Ratio - Input:Output [custom] | 1:1 |
| Rds On (Typ) | 3.8 mOhm |
| Rds On (Typ) | 2 mOhm |
| Supplier Device Package | V-DFN3030-8 (Type R) |
| Switch Type | General Purpose |
| Voltage - Load [Max] | 4 V |
| Voltage - Load [Min] | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DML1006LDS Series
The DML1006LDS is a single channel load switch with very low on-resistance in a small package. It contains an N-channel MOSFET for up to VBIAS-1.5V input voltage operation and 10A current channel with 3.2V to 5.5V bias supply. The load switch is controlled by a low voltage control signal through ON pin.
