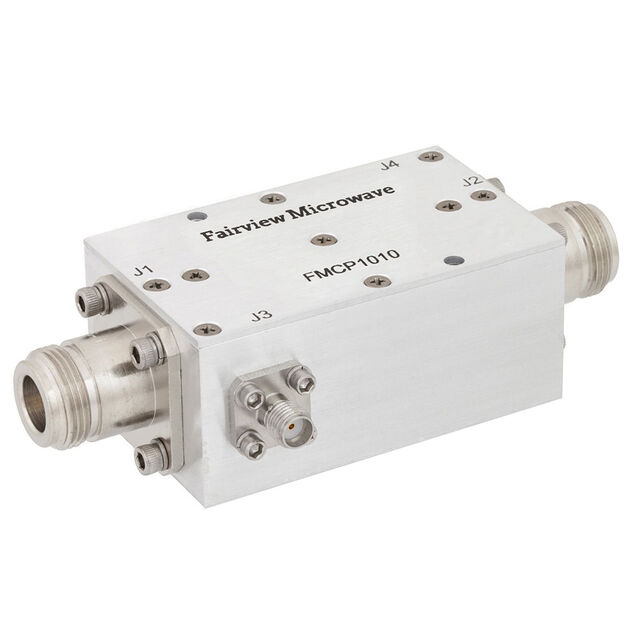

FMCP1010
ActiveFairview Microwave
COUPLER 0.1-0.5 GHZ 500 W TYPE N
FMCP1010
ActiveFairview Microwave
COUPLER 0.1-0.5 GHZ 500 W TYPE N
Description
General part information
FMCP1010
RF Directional Coupler General Purpose 100MHz ~ 500MHz 40 ± 1dB Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCP1010 |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Coupling Factor | 40 dB |
| Coupling Factor Tolerance | 1 dB |
| Frequency (Max) | 500 MHz |
| Frequency (Min) | 100 MHz |
| Insertion Loss | 0.3 dB |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
