H-7
ActiveCurtis Industries

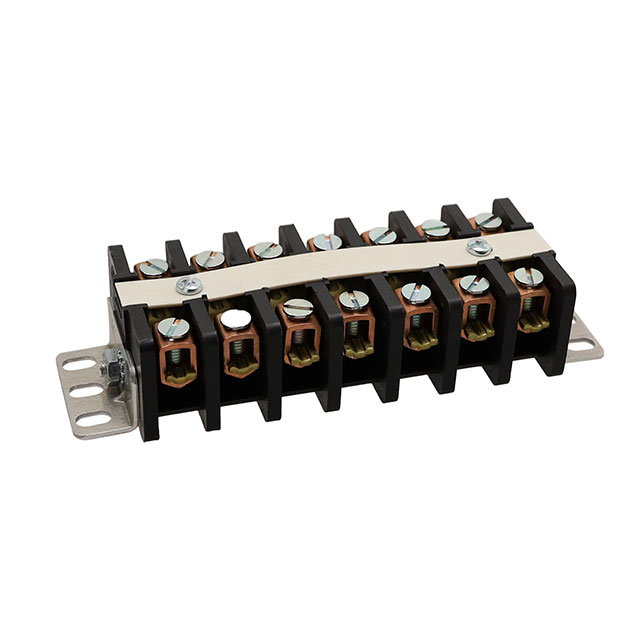

CONN BARRIER STRIP 7CIRC 0.652"
H-7
ActiveCurtis Industries
CONN BARRIER STRIP 7CIRC 0.652"
Description
General part information
H-7
7 Circuit 0.652" (16.56mm) Barrier Block Connector Screws
Technical Specifications
Parameters and characteristics for this part
| Specification | H-7 |
|---|---|
| Barrier Type | 2 Wall (Dual) |
| Bottom Termination | Closed |
| Current Rating | 75 A |
| Features | Flange |
| Material - Insulation | Polyester Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Chassis, Panel |
| Number of Circuits | 7 |
| Number of Rows | 2 |
| Number of Wire Entries | 14 |
| Operating Temperature | 130 °C |
| Pitch | 0.652 in |
| Terminal Block Type | Barrier Block |
| Top Termination | Screws |
| Voltage Rating | 600 V |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 4 AWG |
