16UL1429STRGRE1000
ActiveRemington Industries
#16 UL1429 150V WIRE GRE 1000'
16UL1429STRGRE1000
ActiveRemington Industries
#16 UL1429 150V WIRE GRE 1000'
Description
General part information
16UL1429STRGRE1000

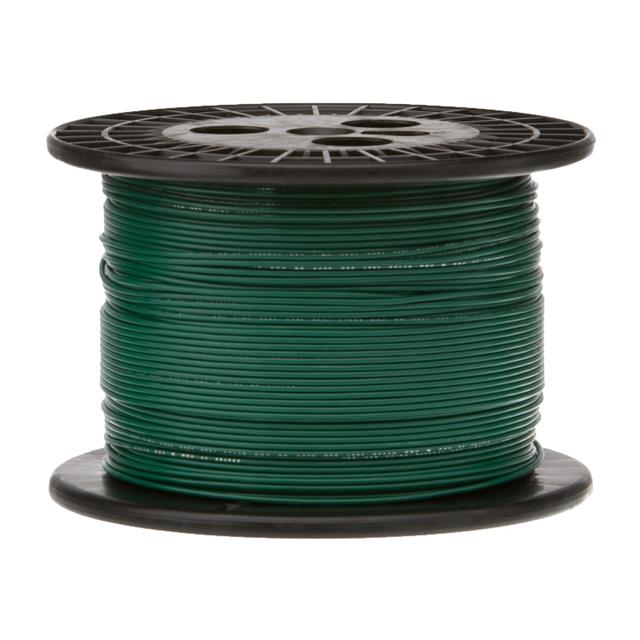

16 AWG Hook-Up Wire 19/29 Green 150V 1000.0' (304.8m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 16UL1429STRGRE1000 |
|---|---|
| Cable Type | Hook-Up |
| Conductor Material | Tinned, Copper |
| Conductor Strand Count | 19 |
| Conductor Strand Gauge | 29 AWG |
| Features | Abrasion Resistant, Solvent Resistant, Oil Resistant, Chemical Resistant |
| Jacket (Insulation) Diameter | 0.078 in |
| Jacket (Insulation) Material | Irradiated, Poly-Vinyl Chloride (XLPVC) |
| Jacket (Insulation) Thickness | 0.01 in |
| Jacket Color | Green |
| Length | 1000 ft |
| Operating Temperature | 80 °C |
| Ratings | 1429, Style, UL |
| Voltage | 150 V |
| Wire Gauge | 16 AWG |
