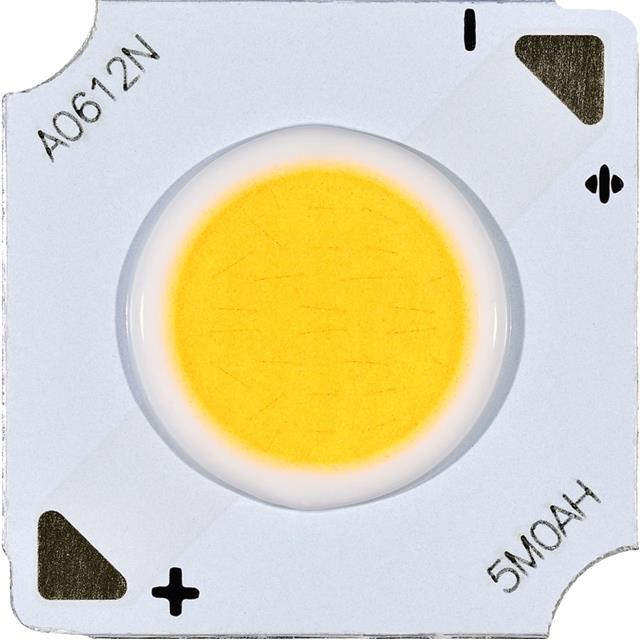

CHA0612-0000-000N0H0A35H

Active

Cree LED

LED COB XLAMP WARM WHT SQU 3500K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CHA0612-0000-000N0H0A35H

Active

Cree LED

LED COB XLAMP WARM WHT SQU 3500K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CHA0612-0000-000N0H0A35H	CHA0612 Series

CCT (K)	3500 K	2700 - 4000 K
Color	White, Warm	Neutral, White, Warm
Configuration	Square	Square
CRI (Color Rendering Index)	80	80 - 95
Current - Max [Max]	600 mA	1.2 - 600 A
Current - Test	350 mA	350 mA
Height [z]	1.5 mm	1.5 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	6 mm Dia	6 mm Dia
Lumens/Watt @ Current - Test	130 lm/W	90 - 133 lm/W
Luminous Flux @ Current/Temperature	1636 lm	1138 - 1678 lm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	114 °	114 °
Voltage - Forward (Vf) (Typ)	36 V	18 - 36 V

CHA0612 Series

XLAMP CHA LIGHT EMITTING DIODE WHITE

Part	Temperature - Test	Lumens/Watt @ Current - Test	Color	Voltage - Forward (Vf) (Typ)	Configuration	Height [z]	Lens Type	Light Emitting Surface (LES) [diameter]	Viewing Angle	Luminous Flux @ Current/Temperature	Current - Max [Max]	CCT (K)	Type	CRI (Color Rendering Index)	Current - Test
Cree LED CHA0612-0000-000F0Z0A40H	85 °C	105 lm/W	Neutral, White	18 V	Square	1.5 mm	Flat	6 mm Dia	114 °	1329 lm	1.2 A	4000 K	Chip On Board (COB)	95
Cree LED CHA0612-R160-00PN0Z0A27H	85 °C		Warm, White	36 V	Square	1.5 mm	Flat	6 mm Dia	114 °		600 mA	2700 K	Chip On Board (COB)	95	350 mA
Cree LED CHA0612-R160-00PN0U0A40H	85 °C		Neutral, White	36 V	Square	1.5 mm	Flat	6 mm Dia	114 °		600 mA	4000 K	Chip On Board (COB)	90	350 mA
Cree LED CHA0612-0000-000F0H0A27H	85 °C	120 lm/W	Warm, White	18 V	Square	1.5 mm	Flat	6 mm Dia	114 °	1516 lm	1.2 A	2700 K	Chip On Board (COB)	80
Cree LED CHA0612-0000-000N0U0A27G	85 °C	104 lm/W	Warm, White	36 V	Square	1.5 mm	Flat	6 mm Dia	114 °		600 mA	2700 K	Chip On Board (COB)	90	350 mA
Cree LED CHA0612-0000-000F0U0A40G	85 °C	117 lm/W	Neutral, White	18 V	Square	1.5 mm	Flat	6 mm Dia	114 °	1476 lm	1.2 A	4000 K	Chip On Board (COB)	90
Cree LED CHA0612-0000-000F0H0A40G	85 °C	133 lm/W	Neutral, White	18 V	Square	1.5 mm	Flat	6 mm Dia	114 °	1678 lm	1.2 A	4000 K	Chip On Board (COB)	80
Cree LED CHA0612-R160-00PN0U0A30G	85 °C		Warm, White	36 V	Square	1.5 mm	Flat	6 mm Dia	114 °		600 mA		Chip On Board (COB)	90	350 mA
Cree LED CHA0612-R160-00PF0U0A40H	85 °C		Neutral, White	18 V	Square	1.5 mm	Flat	6 mm Dia	114 °		1.2 A	4000 K	Chip On Board (COB)	90
Cree LED CHA0612-R160-00PF0U0A31Q	85 °C		Warm, White	18 V	Square	1.5 mm	Flat	6 mm Dia	114 °		1.2 A	3100 K	Chip On Board (COB)	90

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	400	$ 4.22

Description

General part information

CHA0612 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CHA0612 White, Warm Square
