8237 010500

Active

Belden Inc.

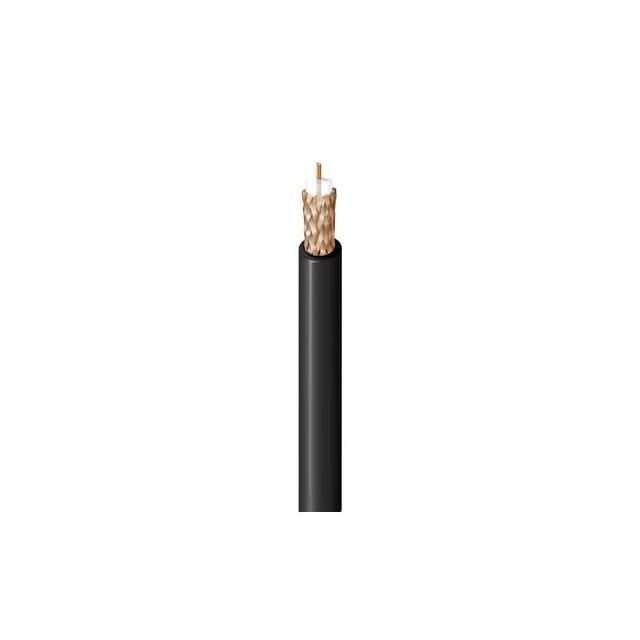

RG-8/U JAN-C-17A COAX

Search across all available documentation for this part.

Active

Belden Inc.

RG-8/U JAN-C-17A COAX

Technical Specifications

Parameters and characteristics for this part

Specification	8237 010500

Cable Group	RG-8
Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand	21 AWG, 7 Strands
Dielectric Diameter [diameter]	7.24 mm
Dielectric Diameter [diameter]	0.285 in
Jacket (Insulation) Diameter [diameter]	10.24 mm
Jacket (Insulation) Diameter [diameter]	0.403 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Shield Coverage	95 %
Shield Material	Copper, Bare
Shield Type	Braid
Usage	RF Signal
Wire Gauge	13 AWG

Part	Impedance	Cable Type	Wire Gauge	Jacket Color	Shield Material	Conductor Material	Conductor Strand	Cable Group	Shield Type	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Length	Length	Usage	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]
Belden Inc. 8237 0101000	50 Ohms	Coaxial	13 AWG	Black	Copper Bare	Copper Bare	7 Strands 21 AWG	RG-8	Braid	95 %	-40 °C	75 ░C	10.24 mm	0.403 in	Poly-Vinyl Chloride (PVC)	304.8 m	1000 ft
Belden Inc. 8237 010500		Coaxial	13 AWG	Black	Copper Bare	Copper Bare	7 Strands 21 AWG	RG-8	Braid	95 %	-40 °C	75 ░C	10.24 mm	0.403 in	Poly-Vinyl Chloride (PVC)	152.4 m	6000 in	RF Signal	7.24 mm	0.285 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 3.30

General part information

Coaxial Cable 13 AWG RG-8 500.0' (152.40m)
