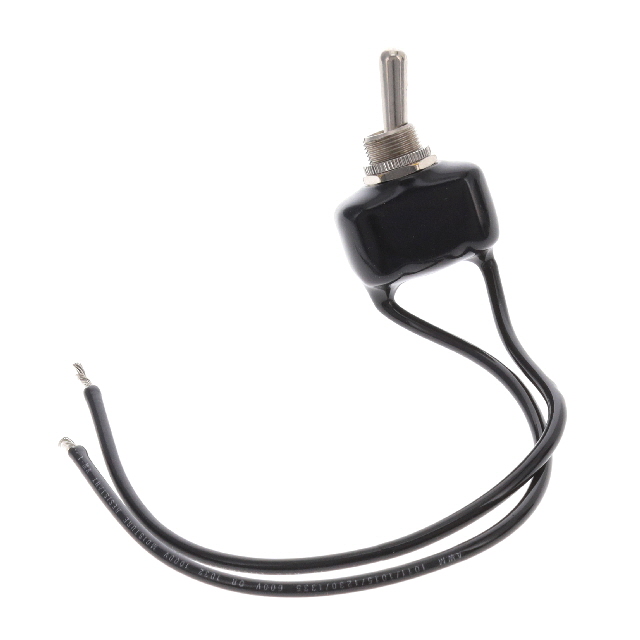

55020-04
ActiveCole Hersee
SWITCH TOGGLE SPST-NO 25A 12V
Deep-Dive with AI
Search across all available documentation for this part.
55020-04
ActiveCole Hersee
SWITCH TOGGLE SPST-NO 25A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 55020-04 | 55020 Series |
|---|---|---|
| Actuator Length [x] | 17.46 mm | 17.46 mm |
| Actuator Material | Brass, Nickel Plated | Brass, Nickel Plated |
| Actuator Type | Standard Round | Standard Round |
| Bushing Thread | 15/32-32 | 15/32-32 |
| Circuit | SPST-NO | SPST-NO |
| Current Rating (Amps) | 25 A | 15 - 25 A |
| Illumination | Non-Illuminated | Non-Illuminated |
| Panel Cutout Dimensions [diameter] | 11.9 mm | 11.9 mm |
| Switch Function | Off-Mom | Off-Mom |
| Termination Style | Wire Leads | Screw Terminal, Wire Leads |
| Voltage Rating - DC | 12 V | 12 - 24 V |
55020 Series
SWITCH TOGGLE SPST-NO 15A 24V
| Part | Actuator Type | Panel Cutout Dimensions [diameter] | Termination Style | Actuator Material | Voltage Rating - DC | Switch Function | Actuator Length [x] | Bushing Thread | Circuit | Illumination | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|
Cole Hersee 55020-02 | Standard Round | 11.9 mm | Screw Terminal | Brass, Nickel Plated | 24 V | Off-Mom | 17.46 mm | 15/32-32 | SPST-NO | Non-Illuminated | 15 A |
Cole Hersee 55020-04 | Standard Round | 11.9 mm | Wire Leads | Brass, Nickel Plated | 12 V | Off-Mom | 17.46 mm | 15/32-32 | SPST-NO | Non-Illuminated | 25 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.83 | |
| 10 | $ 24.01 | |||
| 25 | $ 22.64 | |||
| 80 | $ 21.00 | |||
| 160 | $ 20.08 | |||
| 320 | $ 19.20 | |||
Description
General part information
55020 Series
Toggle Switch SPST-NO Panel Mount
