787419-1

Obsolete

TE Connectivity AMP Connectors

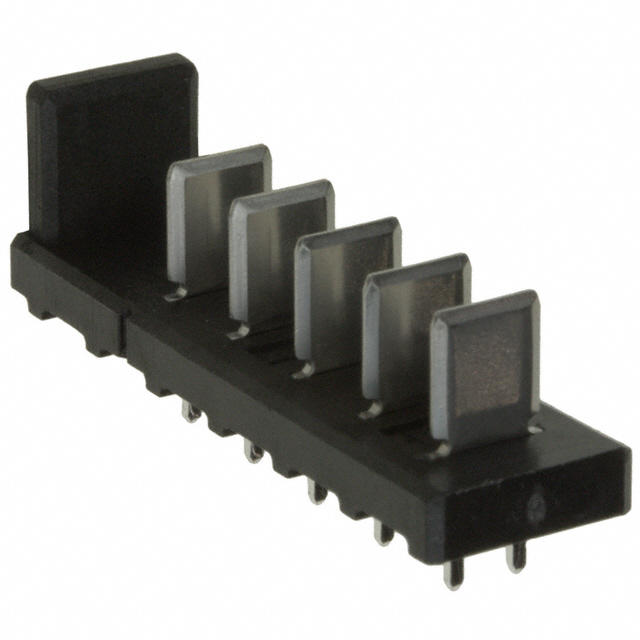

CONN HDR 5POS 5.00MM PCB SLDR

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN HDR 5POS 5.00MM PCB SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	787419-1

Color	Black
Connector Style	10.8V Battery
Connector Type	Male Blades, Header
Contact Finish	Nickel
Contact Finish Thickness	1.9 µm
Contact Finish Thickness	74.8 µin
Contact Material	Brass
Current Rating (Amps)	7 A
Fastening Type	Push-Pull
Features	Board Guide, Right Hand Keying
Material - Insulation	Polyphthalamide (PPA)
Mounting Type	Through Hole
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Termination	Solder
Voltage Rating	10.8 V

CONN HDR 5POS 5.00MM PCB SLDR

Part	Contact Material	Mounting Type	Number of Rows	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Connector Type	Color	Voltage Rating	Material - Insulation	Connector Style	Termination	Features	Contact Finish	Fastening Type	Contact Finish Thickness	Contact Finish Thickness
TE Connectivity AMP Connectors 787419-1	Brass	Through Hole	1	7 A	70 °C	-30 ░C	5 mm	0.197 in	Header, Male Blades	Black	10.8 V	Polyphthalamide (PPA)	10.8V Battery	Solder	Board Guide, Right Hand Keying	Nickel	Push-Pull	1.9 µm	74.8 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5 Position Header, Male Blades Connector Solder 0.197" (5.00mm) Through Hole
